Automatic CNC Metal Flat Iron Strip Hose Pipe Clamp Bending and Forming Machine
Hose Pipe Clamp Bending and Forming Machine model:TPCB-60-6
Width:20.0-60.0mm
Thickness :Max 6.5mm
Description

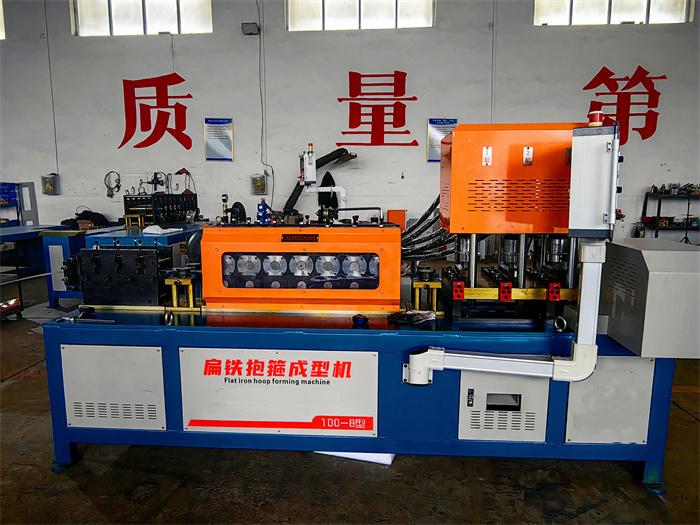

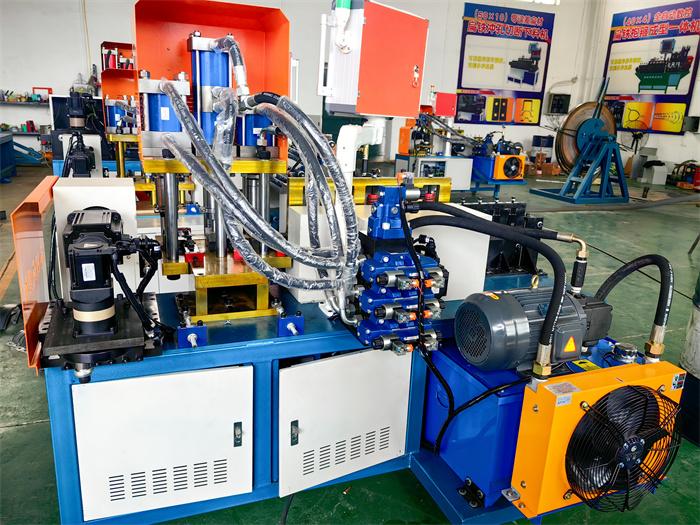

The new high-speed CNC automatic flat iron hoop forming machine, this
equipment is for the strip steel automatic blanking, punching, cutting, stamping.
pressing a one-time completion, can achieve the full automatic production of the hoop
The equipment has the advantages of precise structure, solid materials, stable
production performance,guaranteed after-sales service, saving traditional
processing processes and labor costs,and greatly improving work efficiency.

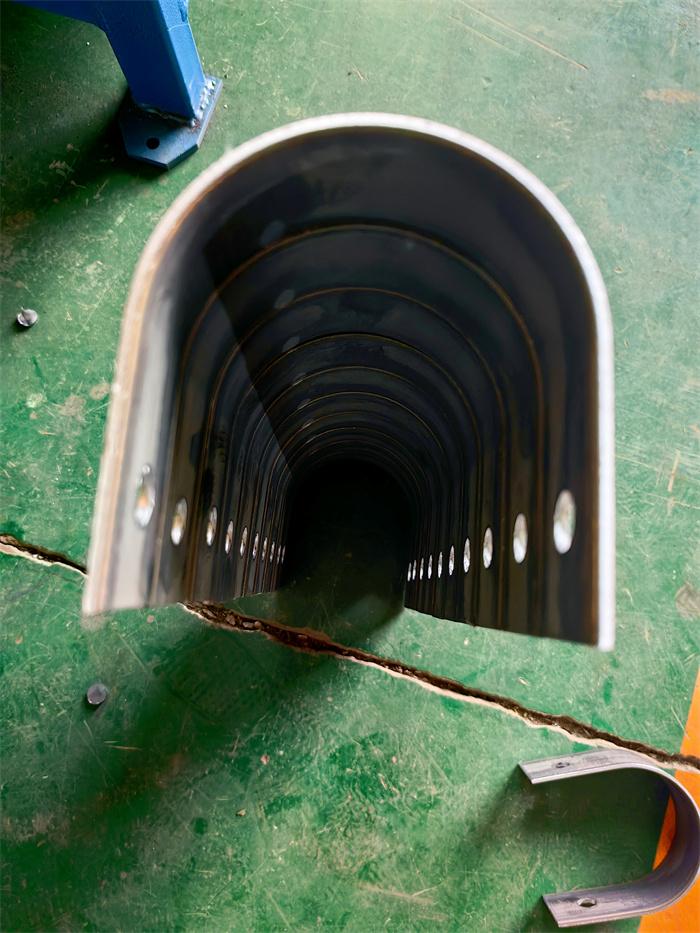

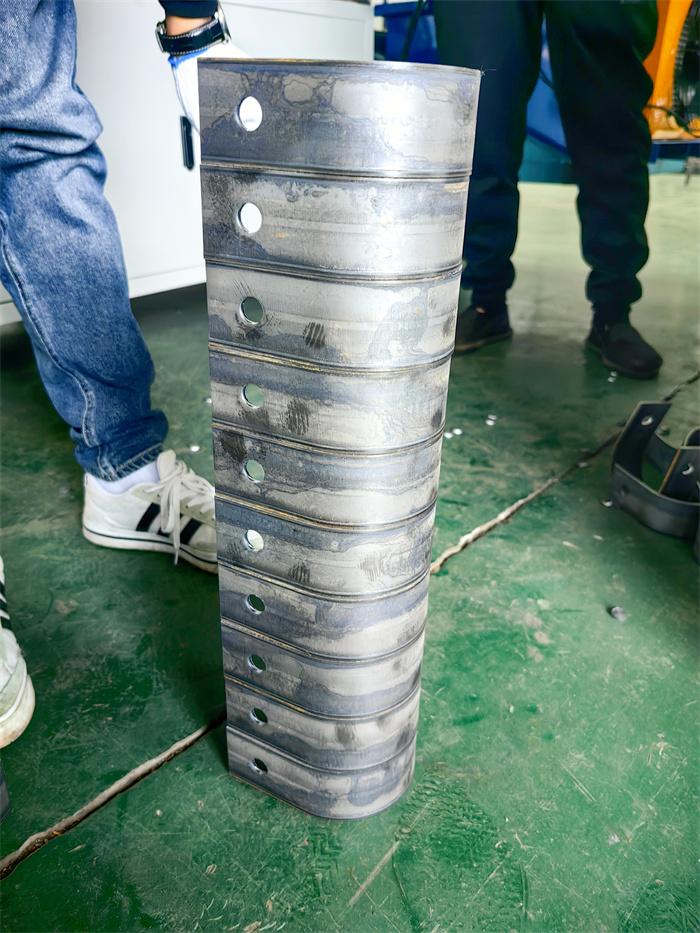

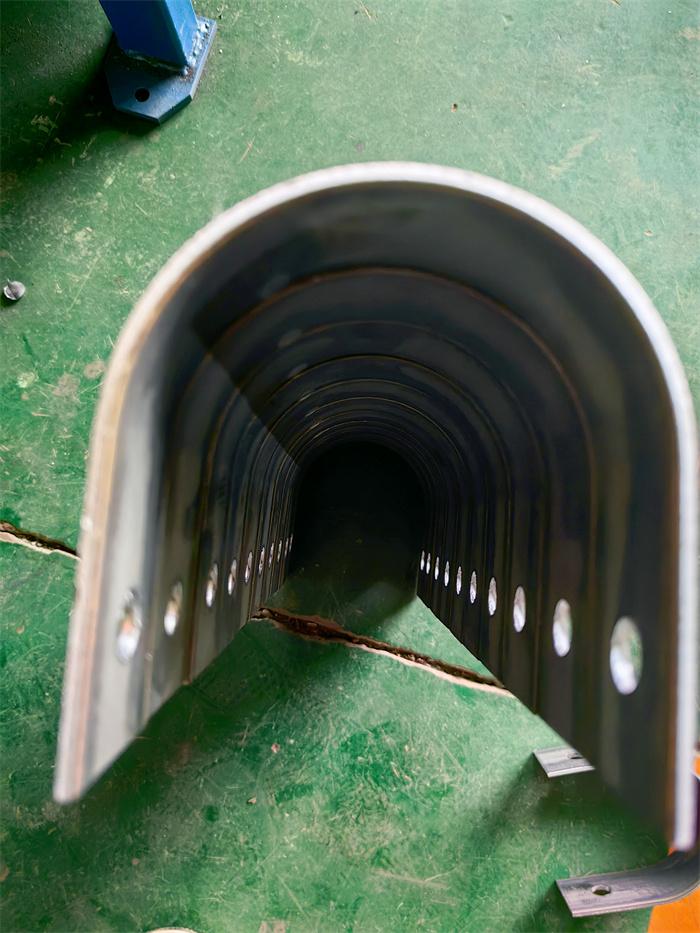

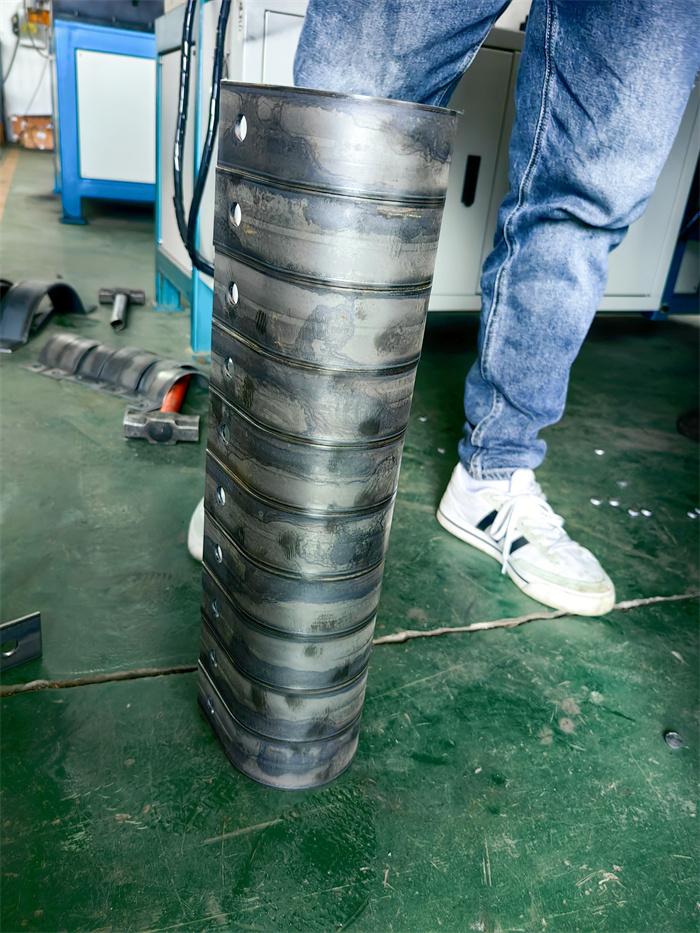

Flat iron hoop forming machine is suitable for U-shaped hoop, traffic sign hoop,power equipment hoop, photovoltaic new energy hoop,anti-seismic bracket hoop,pipeline gallery hoop, metal tools and iron accessories, stainless steel, strip steel,etc., can be customized to produce various specifications hoop.
| Machine type | Hose Pipe Clamp bending machine |
| Machine model | TPCB-60-6 |
| Width | 20.0-60.0mm |
| Thickness | Max 6.5mm |
| Min edge length | 30mm |
| Max edge length | 5000mm |
| Feeding speed | Max 55m/min |
| Bending angle speed | Max 800°/second |
| Feeding servo motor | 5.5kw*1 |
| Bending servo motor | 3kw*2 |
| Flexible servo motor | 0.75kw |
| Hydraulic pump station power | 11kw |
| Punching cylinder | 150*50 |
| Cutting cylinder | 150*50 |
| Feeding wheel material | CR 12MOV |
| Mould material | CR 12MOV |
| Outside dimension | 2200X1900x1800mm |
| Weight | 1800kgs |
