Automatic Galvanized Umbrella Head Twisted Corrugated Roofing Nail Making Machine
Roof Nai diameter: 2.38-4.5mm
Roof nail length: 35-100mm
machine speed: 150-180pcs/min
Motor power: 4kw
Description
Automatic Galvanized Umbrella Head Twisted Corrugated Roofing Nail Making Machine
Roofing nails are formed by two machines, one is the nail cap making machine and another is the machine to make nail shank and joining cap and shank together.
Complete Production Steps:
* Using the wire drawing machine draw steel wire to the needed diameter(add wire twisting device if needed)
* Use the Roofing nail cap making machine to make the roofing caps;
* Polish the caps by using the nail polishing machine
* Put the caps in the caps box fixed on top of the roofing nail making machine;
* Roofing nail making machine will connect the nail cap and the nail shank together.
* Galvanize the roofing nails
Brief Introduction:
The roofing nail making machine is used to make umbrella head roofing nails, it punchs the cap to the nail body to form the roofing nail.

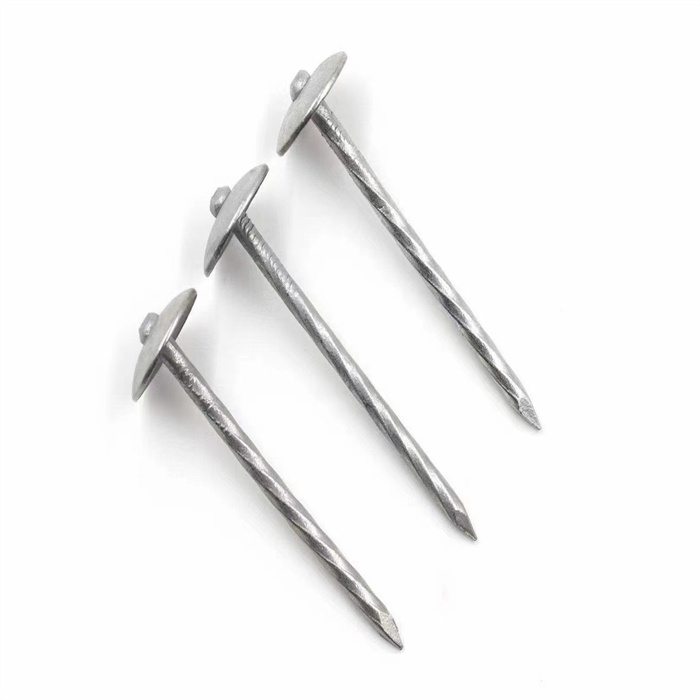

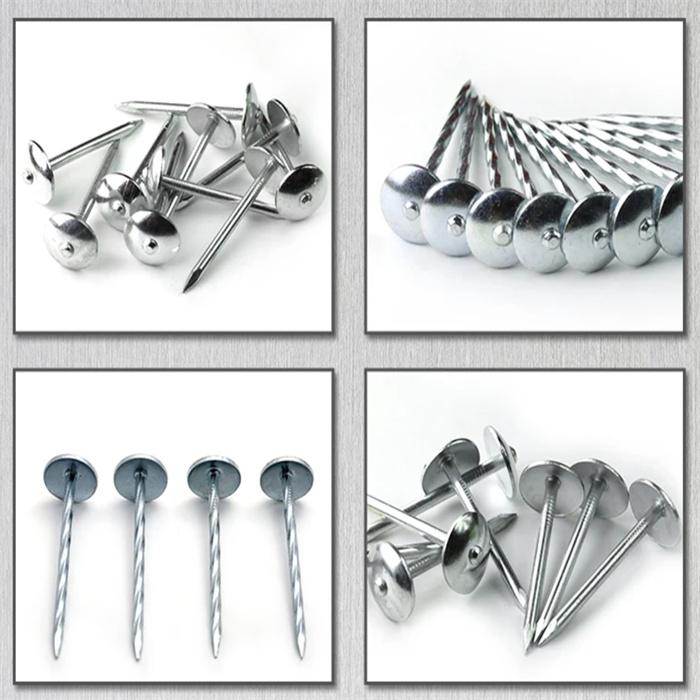

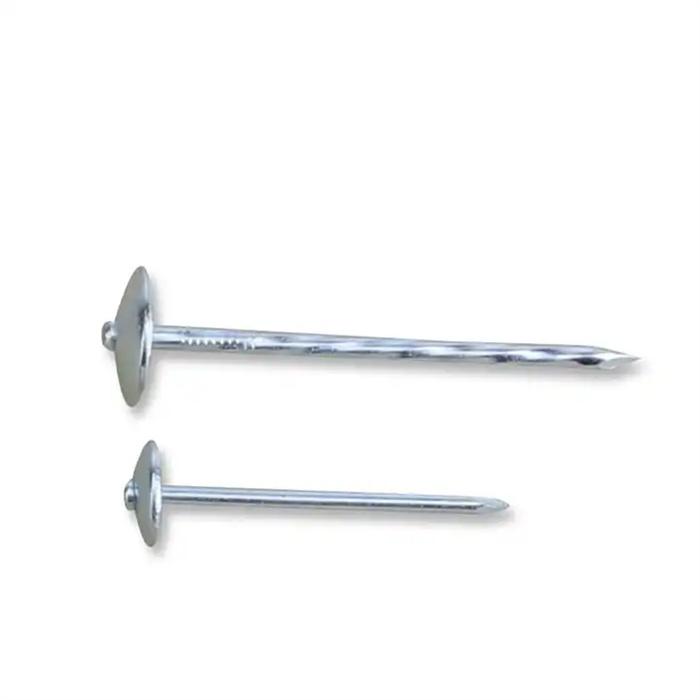

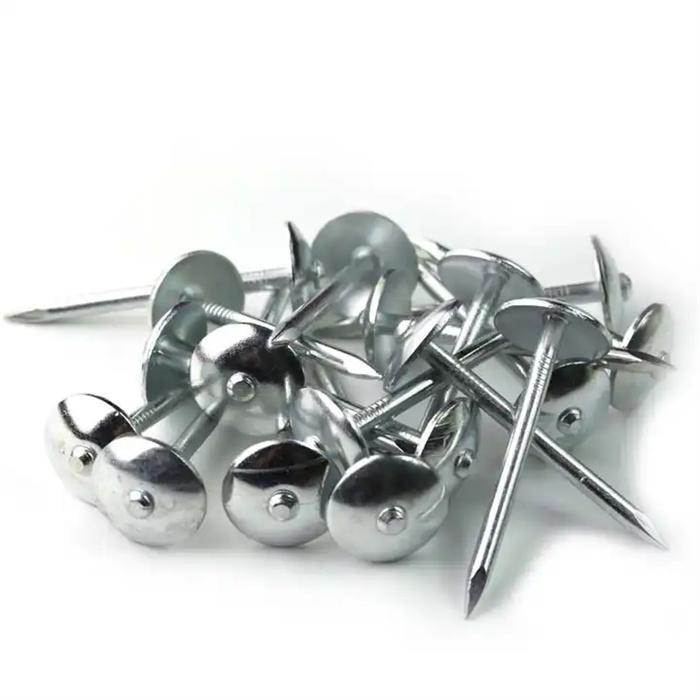

Roofing nails are usually used outdoors roof, it can be used for connecting wooden parts, as well as for fixing asbestos tiles and plastic tiles. There are also smooth shank roofing nail, Twisted shank roofing nails.
The roofing nail making machine is used to make umbrella head roofing nails, it punchs the cap to the nail body to form the roofing nail.
Roofing nails are usually used outdoors roof, it can be used for connecting wooden parts, as well as for fixing asbestos tiles and plastic tiles. There are also smooth shank roofing nail, Twisted shank roofing nails.
The commonly used size of roofing nail is from 1.5 inch to 2.5 inch(38mm to 63mm)
Specification

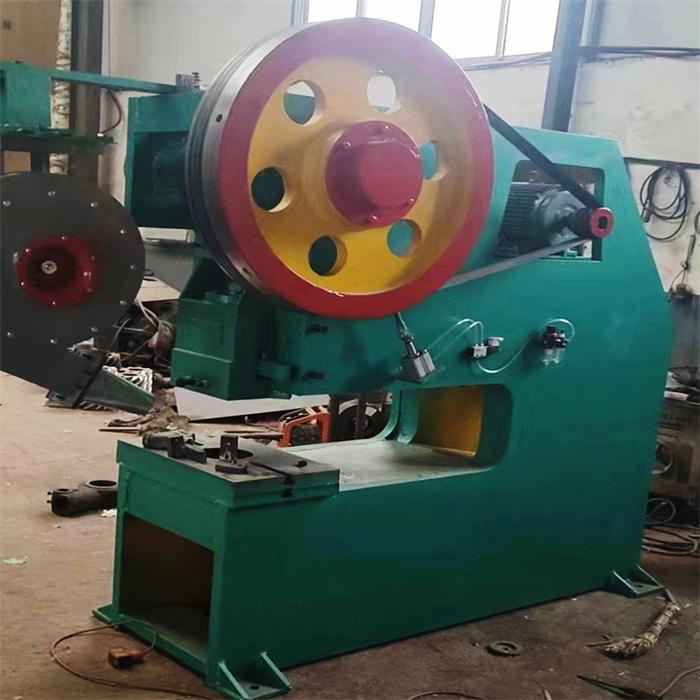

| 25T Cap Making Machine | |
| Productivity (pcs/min) | 3*65 |
| Motor power (kw) | 5.5 |
| Weight (kg) | 2300 |
| Overall dimension (L*W*H) (MM) | 1000*800*2000 |
| Cap size | 8-14G |
| Automatic Corrugated Nail Machine | |
| Max Nail Diameter(mm) | 3.8 (0.15 inch) |
| Min Nail Diameter(mm) | 2.38 (0.09 inch) |
| Max Nail Length(mm) | 63 (2.5 inch) |
| Min Nail Length(mm) | 38 (1.5 inch) |
| Motor Power (kw) | 4 |
| Weight (kg) | 2100 |
| Nail Making Speed(pcs/min) | 110 |
| Overall dimension(mm) | 2700*1600*1500 |
