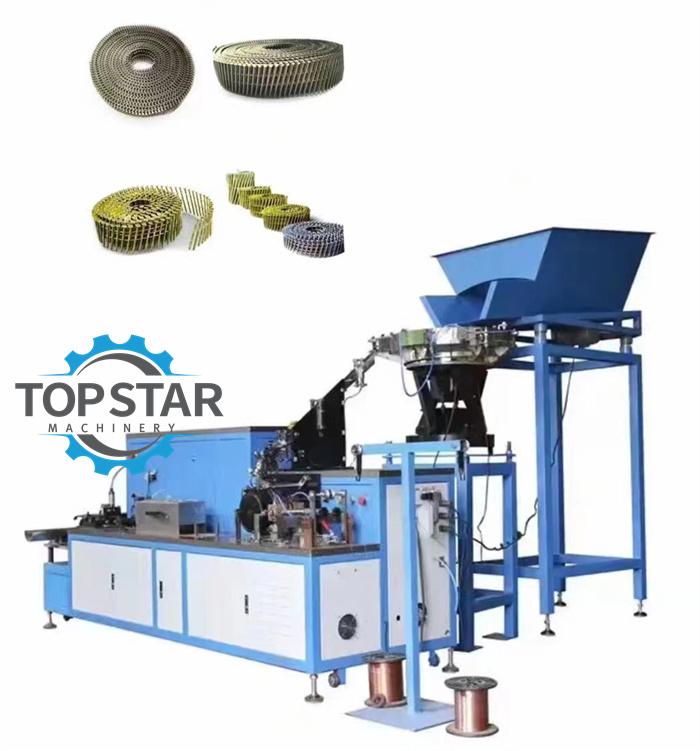

automatic pallet nail coiling machine nail welding machine roofing coil nails collator machine
Nail coiling machine Capacity :1600-2200pcs/minute
Raw material: Wire nails
Machine:Voltage 380V 50HZ
Nail length (mm) :20-45mm
Dia of Nail: 3.0-3.5
Description

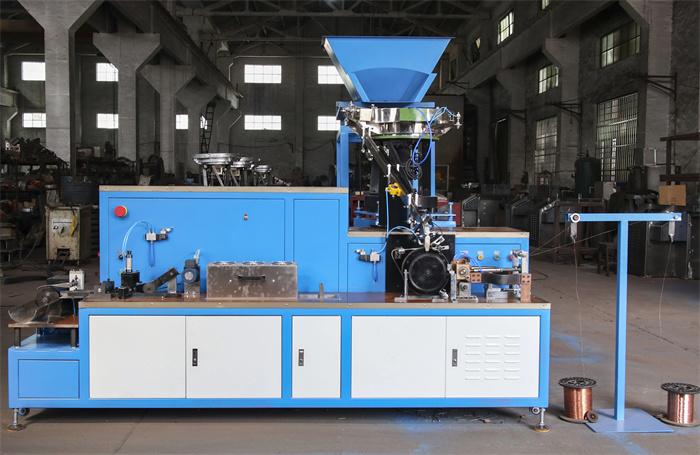

Coil nails production line /Screw nail making machine
Features : Coil nails making machine is an automatically equipment for making coil nails and coil roofing nails. It adopt PLC control, touch screen and electrical components with high quality, detection for lacking of material, leaking, counting and cutting automatically. Low noise, save energy, high working speed and easy to operate.
1. High frequency welding can ensure bigger weld point and firmly welding, no loose welding or lack of welding.
2. Small welding spark, safer.
3. Better quality vibration plate, smoothly feeding, no nail stuck, easy operating and adjusting.
4. Low noise,save energy
5. Machine body with thicker and high quality material.
6. Brand electric parts
Welder: Germany Infineon
Touch screen: Taiwan WEINVIEW
Switch button: Germany Schneider
PLC, Frequency converter: Janpan OMRON

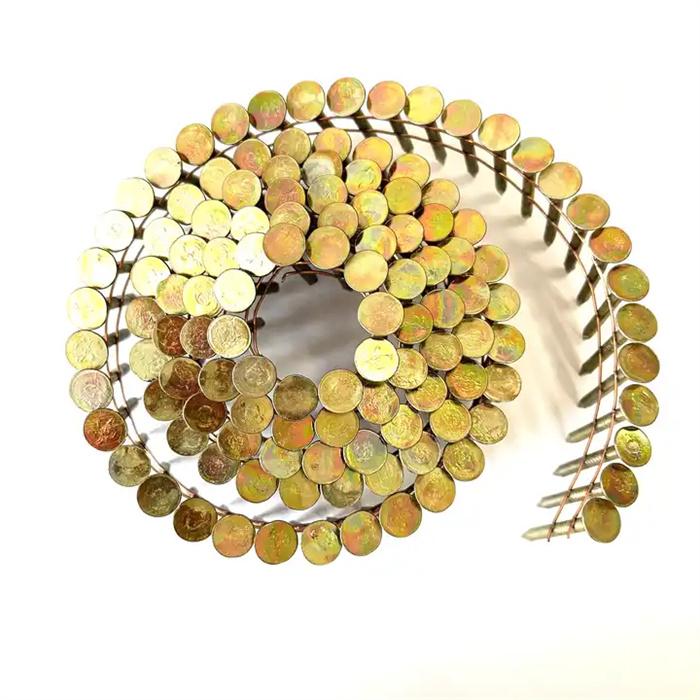

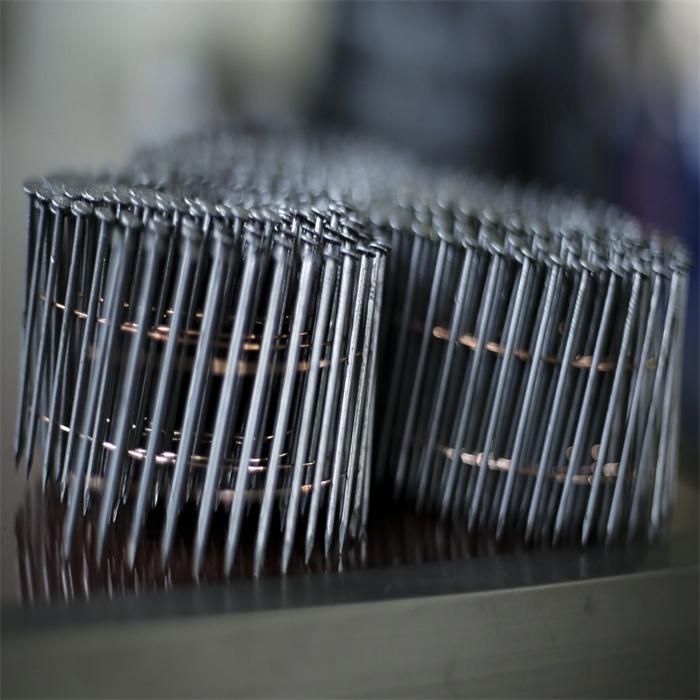

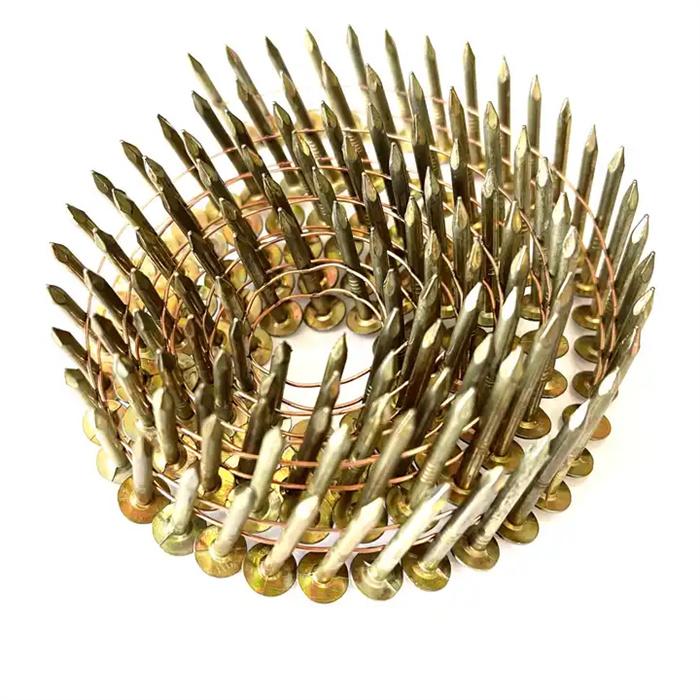

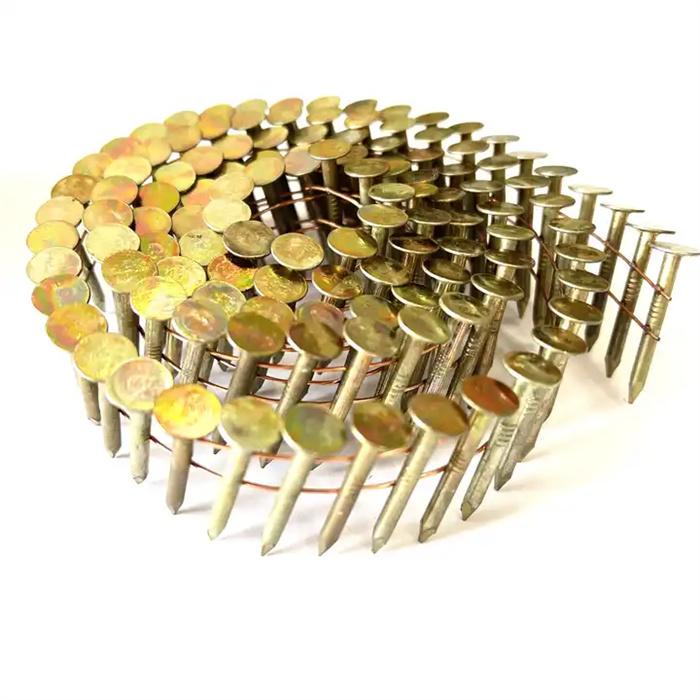

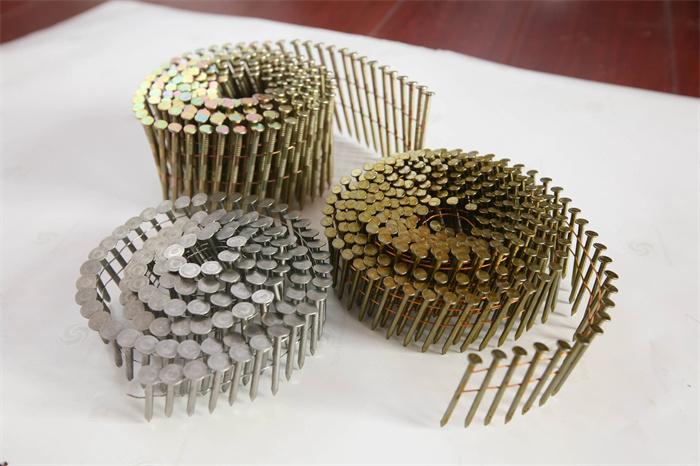

Coil nails application : Coil nails is widely used in construction and decoration, such as soft and hard wood, bamboo ware, ordinary plastic, mud wall, repair furniture, packing wooden cases, etc.
Coil nails Process of nail making:
Wire-Rod → Wires-Drawing → Nail-Making → Polishing →Rolling→Coiling→ Packing → Delivery
| COIL NAIL MAKING MACHINE TSJDF-100 | ||
| No. | Model | TSJDF-100 |
| 1 | Wire Dia. | 1.6mm-5.0mm |
| 2 | Nail Length | 25-120mm |
| 3 | Rated Power | 8kw |
| 4 | Max Power | 12kw |
| 5 | Power of Nail Feeding System | 0.75kw |
| 6 | Power of Welding System | 20kw, 1000-2000A |
| 7 | Power Supply | 3-phase AC 380V 50-60HZ |
| 8 | Output | 1600-2200pcs/minute |
| 9 | Coil nail specification | Angle : 15°/16° Quantity per roll: 200-400pcs/rollWelding wires for coil nails: 0.6mm/0.7mm/0.8mm |
| 10 | Dimension | 3000X1500X1800mm |
| 11 | Weight | 1600kgs |
