Automatic plastic strip nail framing nail collating machine
High collating efficiency
Minimum tooling changeover times
Closed cooling circuit for plastic moulding process
User-friendly design and ergonomics
Description

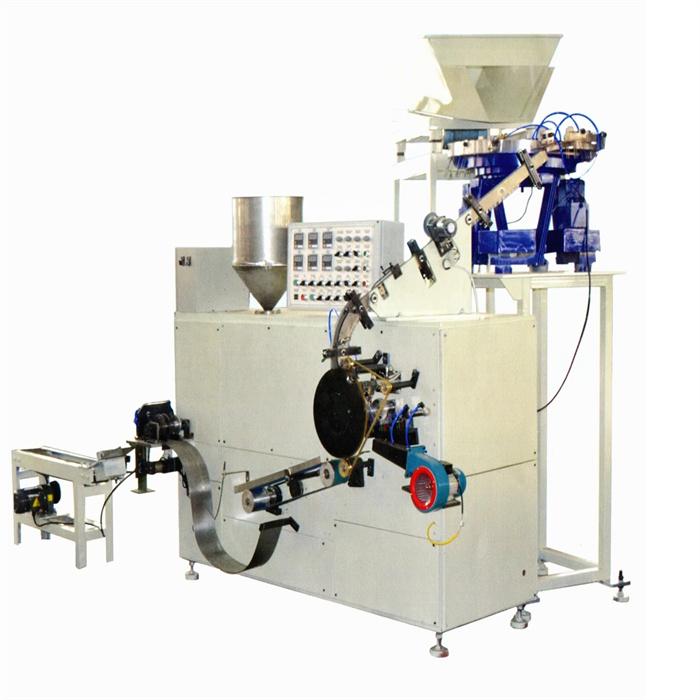

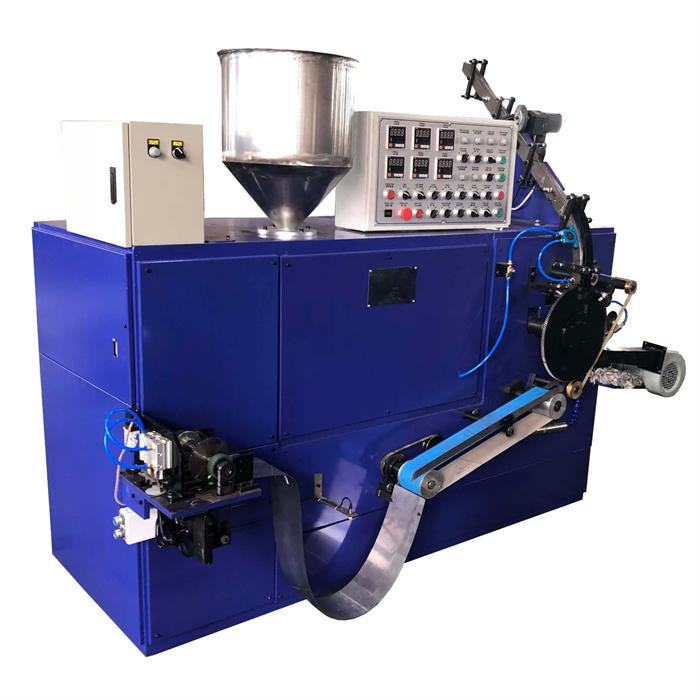

Automatic plastic strip nail collating machine specification

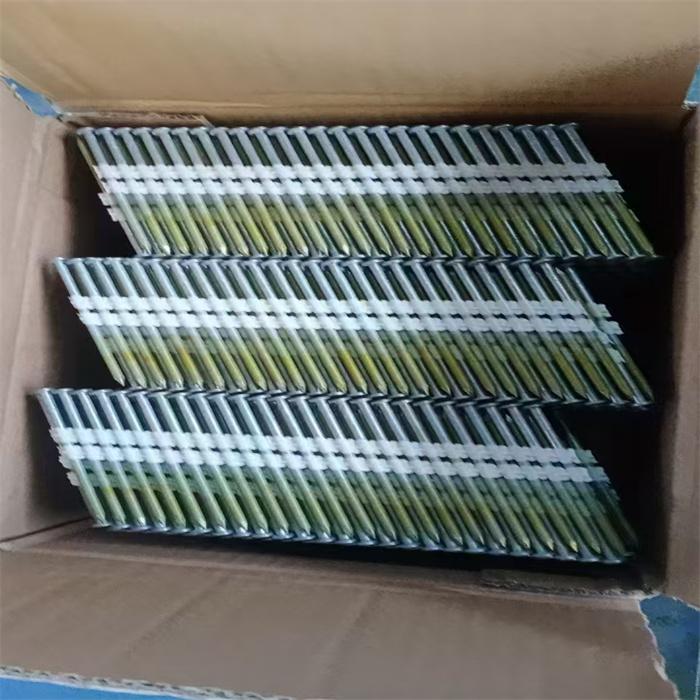

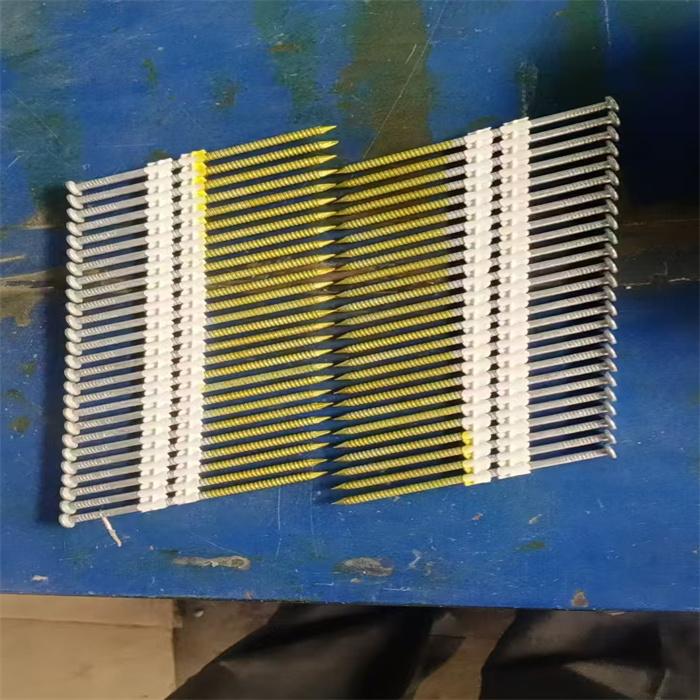

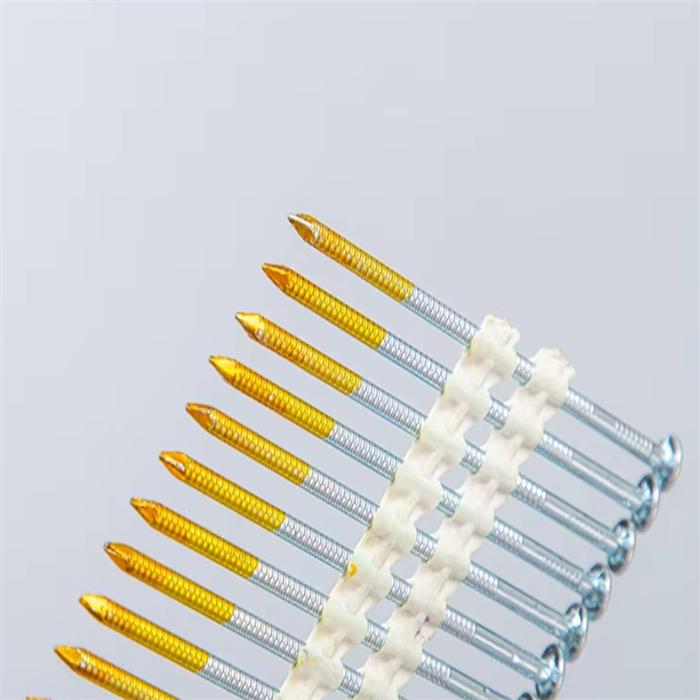

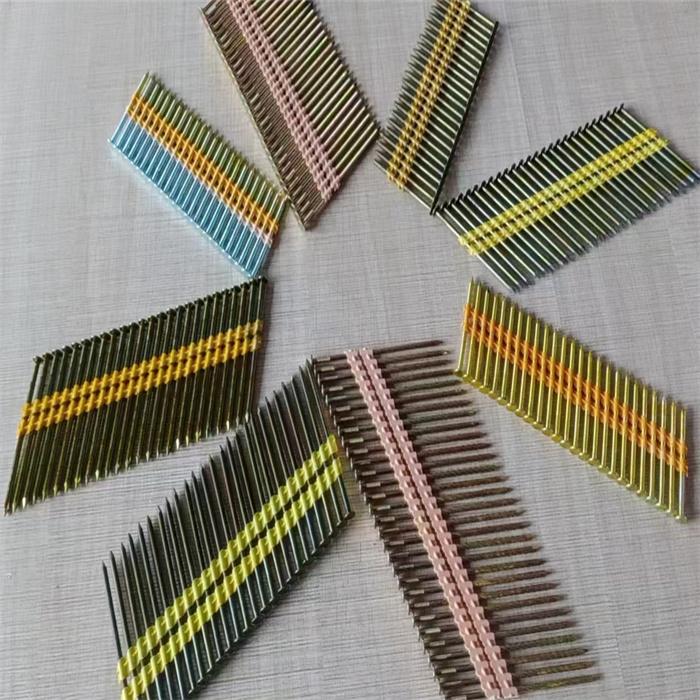

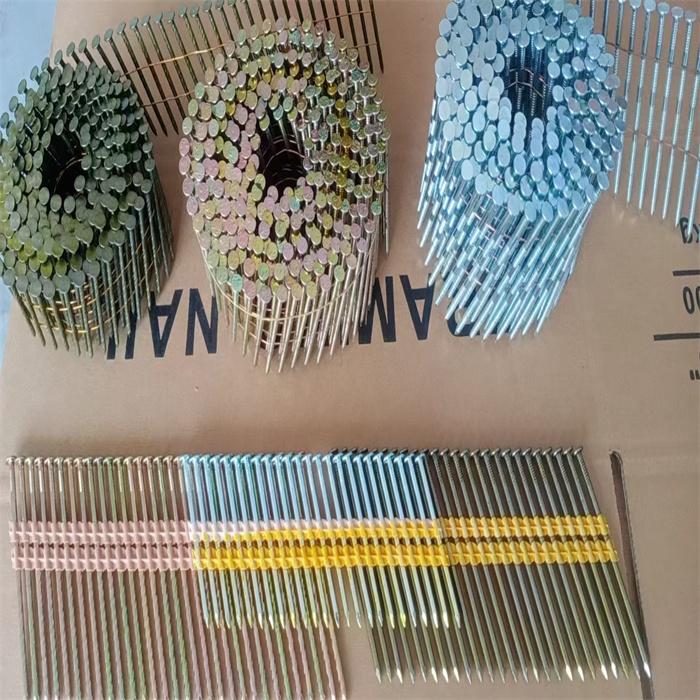

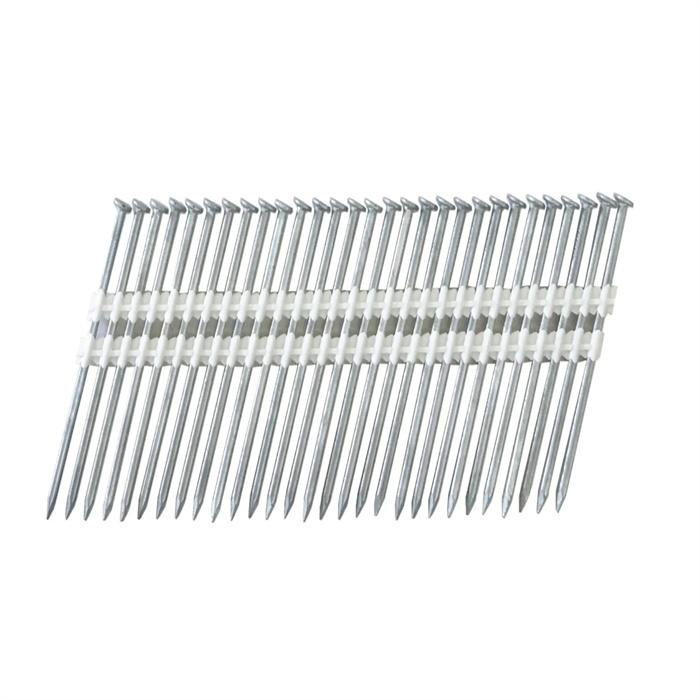

Plastic strip is generally used for 20° – 22° framing nails. They are held together by a strip of plastic that breaks apart when fired by a gun. They are less expensive than other types of collated fasteners (plastic coil or paper strip) because they are easier to manufacture.
Also can avoid deterioration due to weather conditions or high humidity.
| Machine type | plastic strip nail collating machine |
| Nail degree | 21 |
| Nail diameter | 2.5-4.0mm |
| Hot melting temperature | 0-400 |
| Air pressure | 5 KG/M2 |
| Main machine power | 13kw(two motors, heating tubes & vibratory feeder ) |
| Power supply | 380v/50hz(customized) |
| Production capacity | 1200pieces per minute |
| Weight | 1600kgs |
| Outside dimension | 2800*1800*2500mm |
The automatic plastic strip nail collating machine is well-designed and developed in our full-fledged production site by making the best use of pioneering tools and technology. Having equipped with the precision mechanical components and parts, this Industrial Plastic Strip Nail Machine ensures long service life. It is easy to operate the machine due to its user-friendly design and ergonomics.
The automatic plastic strip nail collating machine can produce bright, electro, hot dipped galvanized and stainless steel nails, with smooth shank, ring shank and screw shank.
