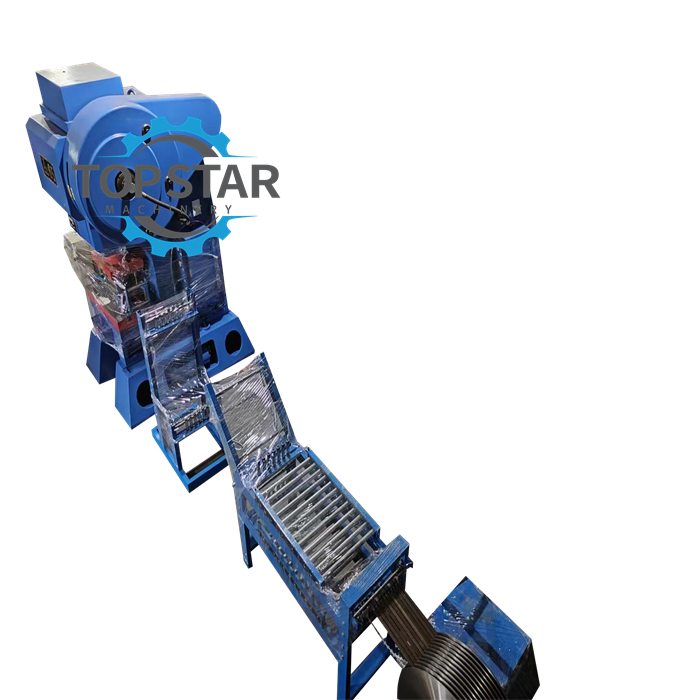

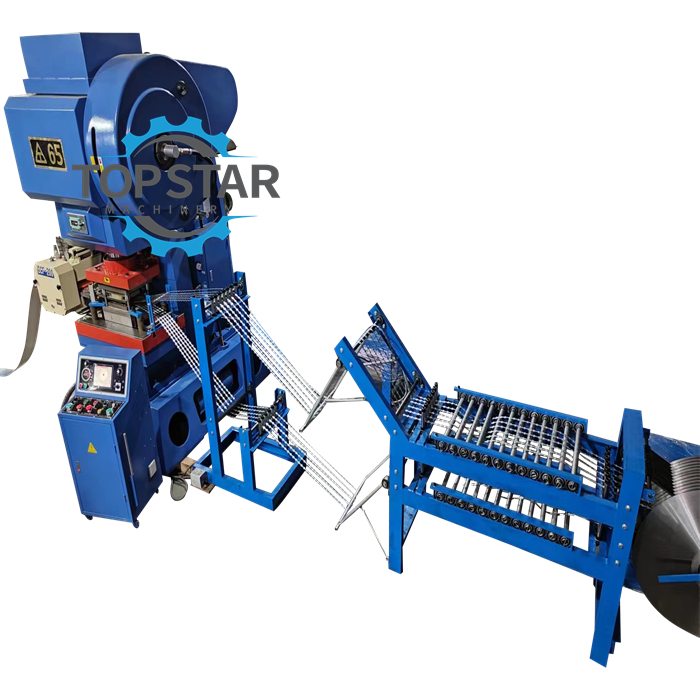

The Automatic high speed 65T razor wire making machine consists of two main components: the punching machine and the wire covering machine. The punching machine is responsible for cutting different razor shapes using various die steel strips. On the other hand, the wire covering machine is used to wrap the razor strips around the steel wire and roll the finished product into a roll.

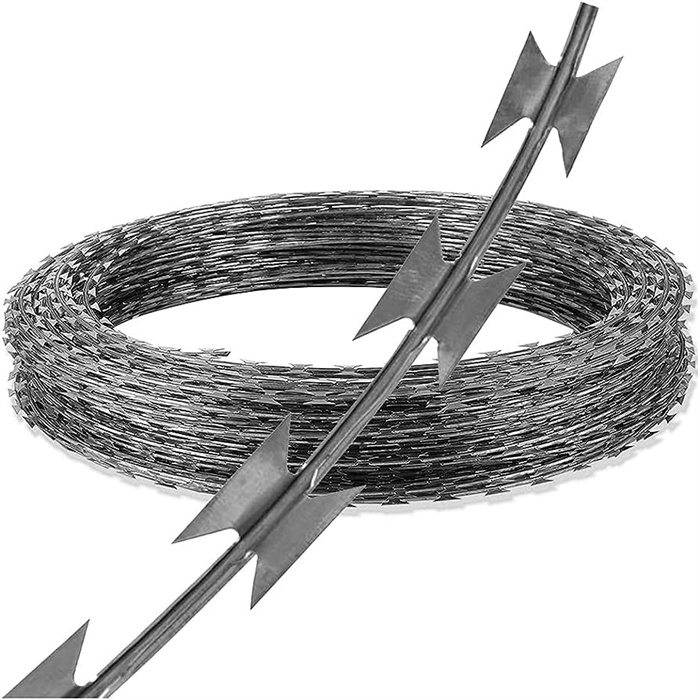

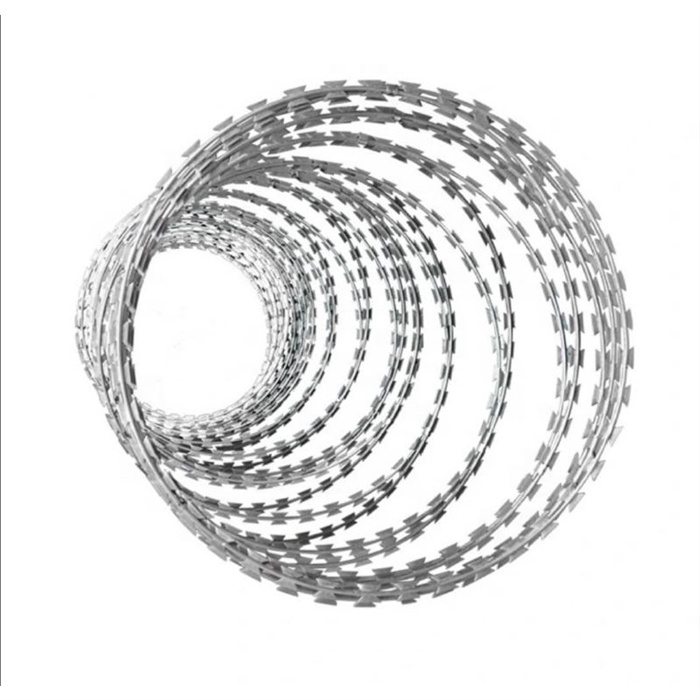

The razor barbed wire has a wide range of applications. It is widely used in military installations, communication stations, power distribution stations, frontier prisons, warehouses, community protection, schools, factories, farms, and other security isolation areas. Its purpose is to enhance security and prevent unauthorized access.

automatic razor wire making machine Specification

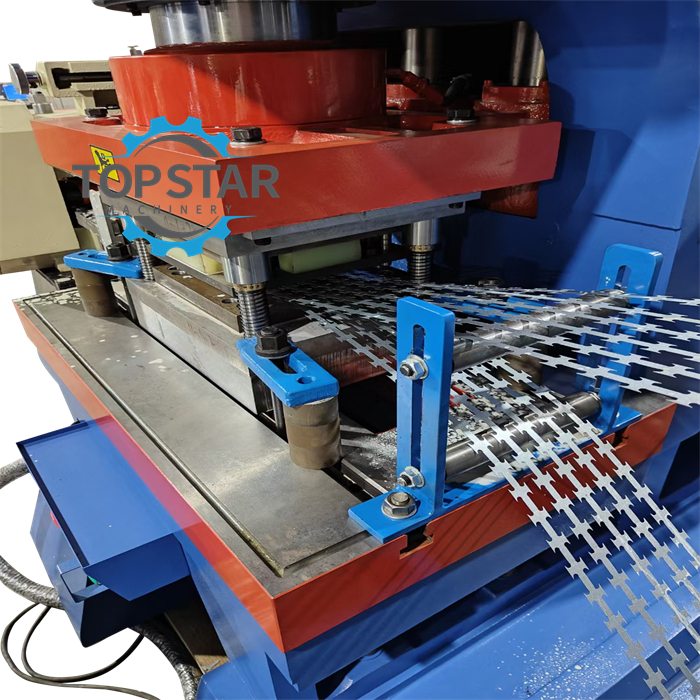

1. Punching Press Machine

Model: 25T 40T 63T 65T

Productivity: 70 times/min, 75times/min, 120 times/min

Strips: 5 strips, 9 strips, 11 strips

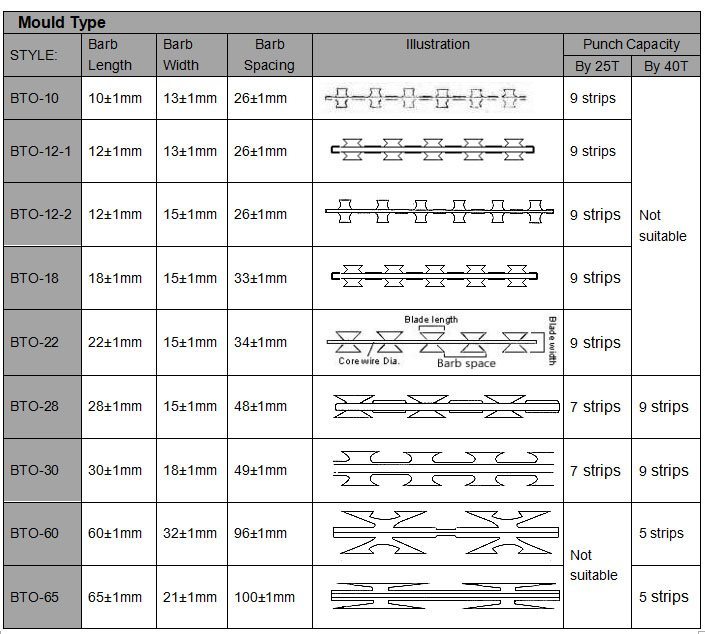

Type: BTO-18, BTO-22, BTO-28, BTO-30, CBT-65

Material of sheet: GI wire and stainless steel

Power: 4kw, 5.5kw 7.5kw

Voltage 3phase: 380V/220V/440V/415V, 50HZ or 60HZ or customized

2. Wire Covering Machine

Power: 1.5KW

Speed: 80kg/h

Wire Dia: 2.5±0.1mmmm

Weight: 300kg

Dimension: 1100 x 750 x 1200mm

If you have any further questions on the automatic razor wire making machine or require additional information, please feel free to reach out to us. We are more than happy to assist you.
