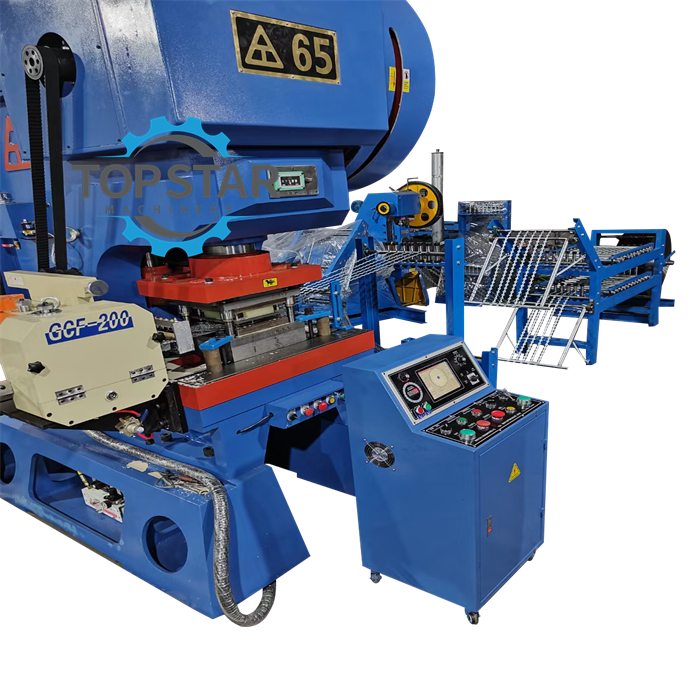

CBT 60 CBT 65 millitary concertina razor barbed wire punching machine
Razor barbed wire punching machine speed: 220-280m/hour
Press:63T
Machine Voltage:220V/380V/440V
Razor type:CBT 60,CBT 65
Description
CBT 60 CBT 65 millitary concertina razor barbed wire punching machine

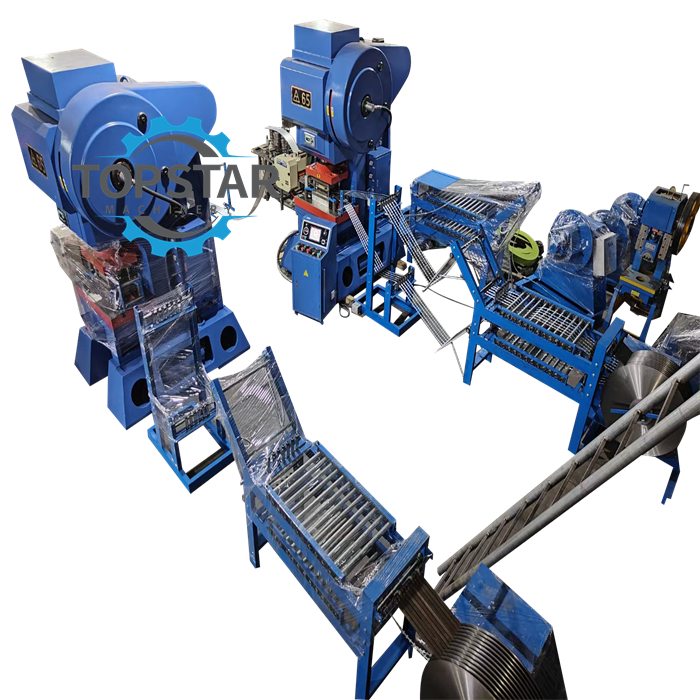

Razor barbed wire machine, also known as Concertina razor barbed wire machine, is a specialized machine for producing razor barbed wire, consisting of a feeding machine, a punching machine, a receiving machine, and a wrapping machine. razor barbed wire are mainly used for various safety isolation purposes such as military facilities, power distribution stations, border lines, prisons, schools, factories, farms, etc.
Features : Razor barbed wire machine is for produce razor barbed wire. The equipment is easy to operate and high efficiency.

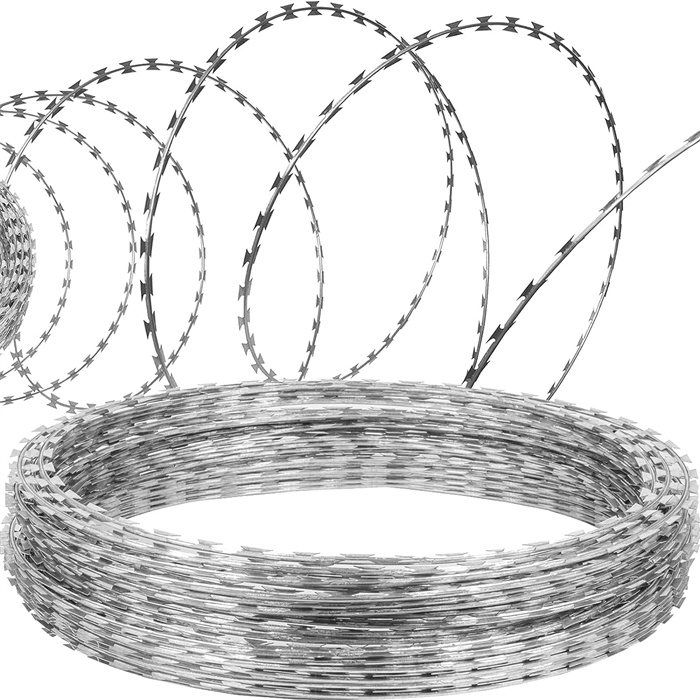

Product application : Razor barbed wire is economical and practical, prevention effect is good. It is widely applied in many countries of industrial and mining enterprises, garden apartment, border posts, military field, prisons, detention center, government buildings and other national security facilities.
Razor barbed wire machine production process is mainly divided into four steps

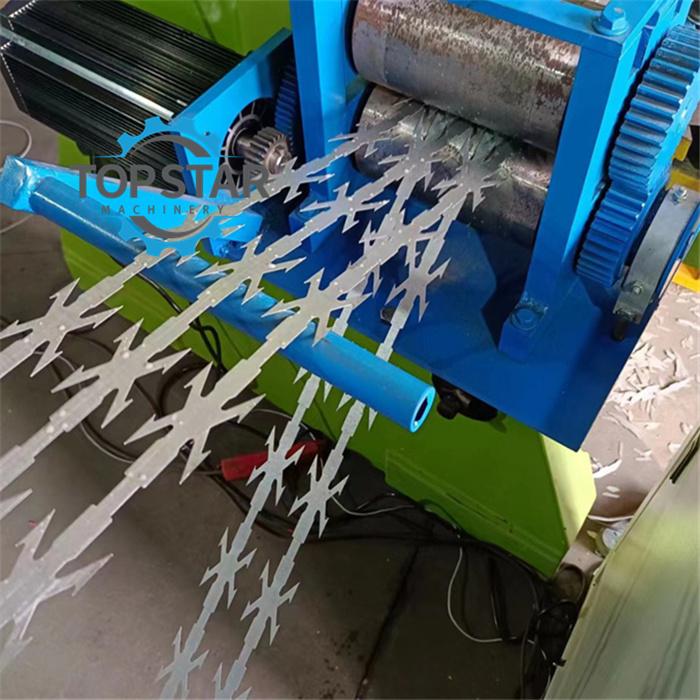

★ 1. Use a punching machine to punch the steel coil into the shape of a blade and roll it up.
★ 2. Use a wire wrapping machine to compact the iron wire into the blade, increasing its toughness.
★ 3. Use an air gun to connect the razor barbed wire together.
★ 4. Use a nail making machine to make air gun nails
| Model | 25T | 40T | 63T | Coiling machine |
| Voltage | 3phase 380V/220V/440V/415V, 50HZ or 60HZ | |||
| Power | 4kw | 5.5kw | 7.5kw | 1.5kw |
| Producing speed | 70 times/min | 75 times/min | 120 times/min | 3-4 Ton/8h |
| Pressure | 25Ton | 40Ton | 63Ton | — |
| Material thickness
and wire diameter |
0.5±0.05(mm),according to customers’ requirement | 2.5mm | ||
| Material of sheet | GI and stainless steel | GI and stainless steel | GI and stainless steel | — |
