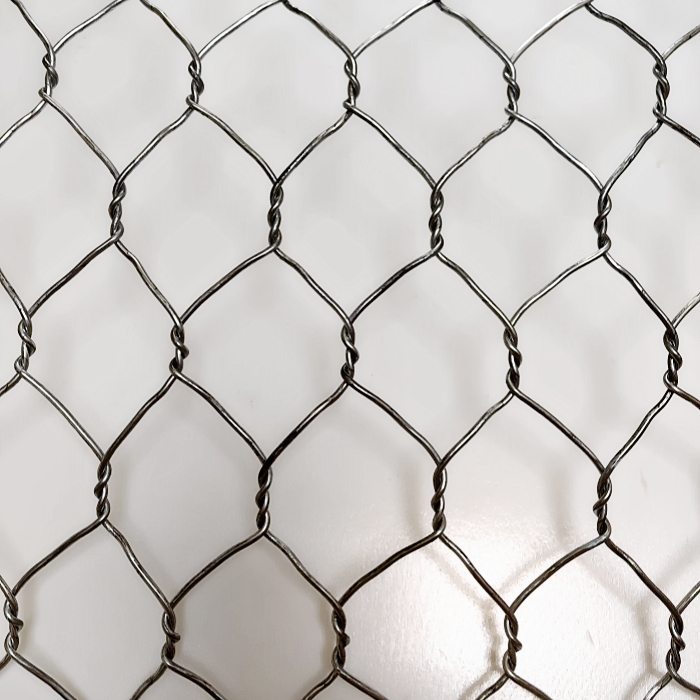

Chicken wire netting machine
wire mesh hole size:1/2" (13mm)
hexagonal wire mesh width:3000mm
chicken wire netting wire diameter:0.4-1.2mm
Description
Hexagonal chicken wire netting machine advantage:
1. Motor: Delta
2. PLC: Delta
3. Touch screen: Delta

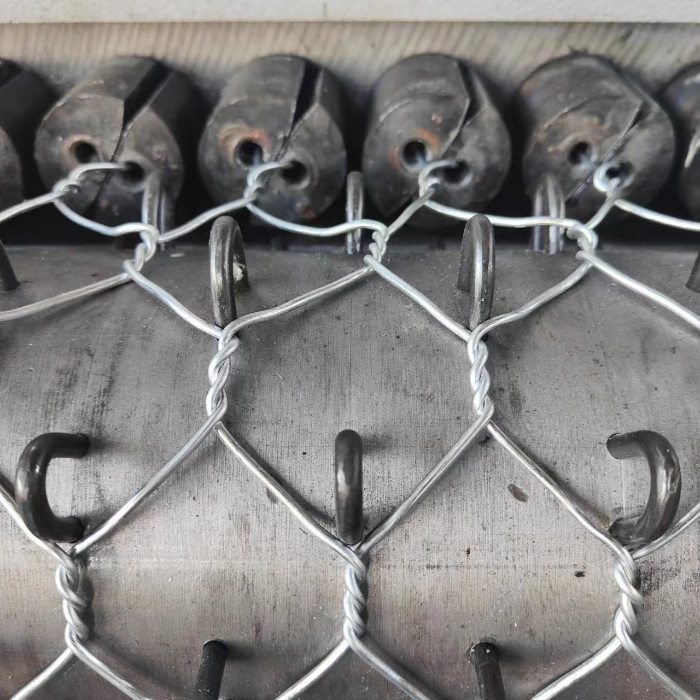

4. Thorn shaft: Thickened, thickened to 12mm (the machine is more stable when working; others make 8mm or 10mm)
5. Body: The thickness of the body is 12mm (other people make 8mm or 10mm)
6. Base: B-type channel steel, thicker (other people’s is A-type or less than A-type), making the overall machine more stable
7. Cross-beam brackets: 2 pcs (Others have one, which makes the machine work more stable)
8. The actual length of the beam of the machine is 3.9 meters, which is convenient for making wire diameters and meshes within any range, and the actual effective length is longer. It can make three 1m meshes (for a machine of 3.7 meters)
9. The pay-off spool is made of round steel (solid, more wear-resistant, and has a longer service life), while others are made of thin tubes
10. Machine appearance design: more beautiful, and the machine makes less noise during the use

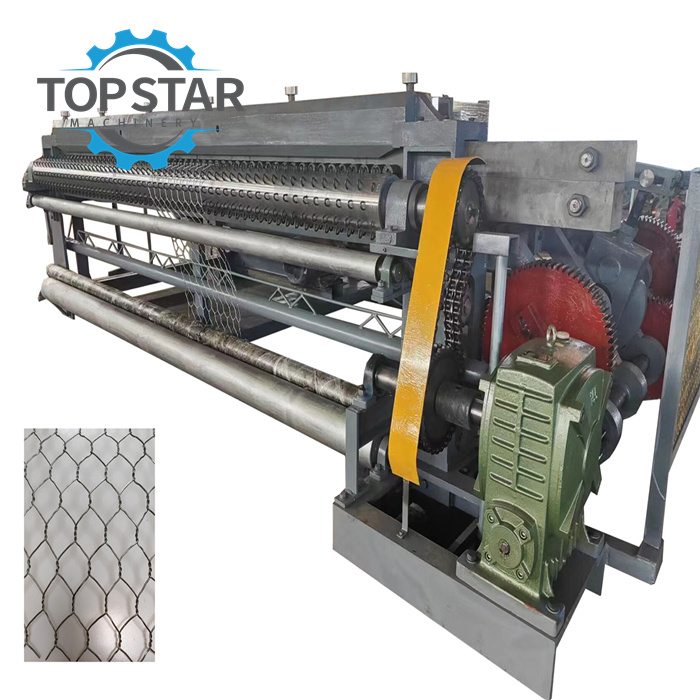

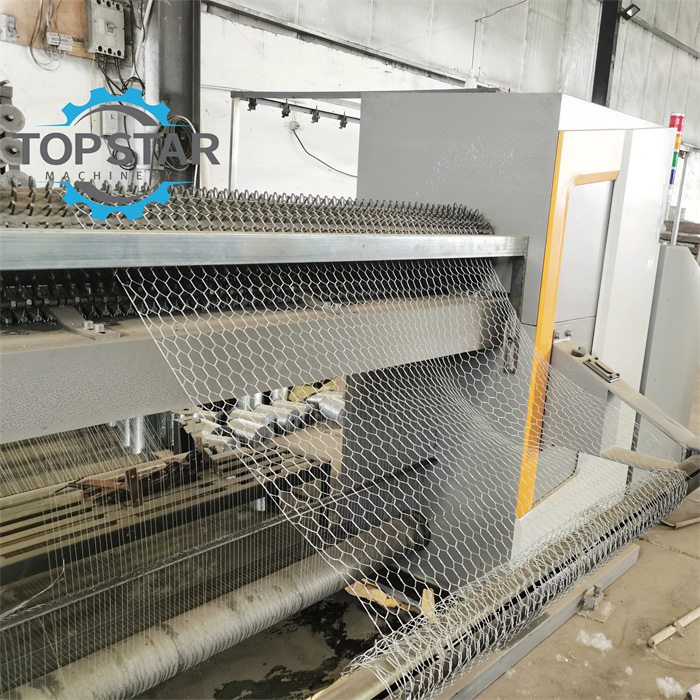

The main wire mesh weaving machine
Hole size: 1/2″ (13mm)
Width: 3000mm
Wire diameter: 0.4-1.2mm
Power: 2.2kw
Capacity: 80-100m/hr
Overall dimension: 2.5m x 1.9m x 1.3m
Weight: 1800kg

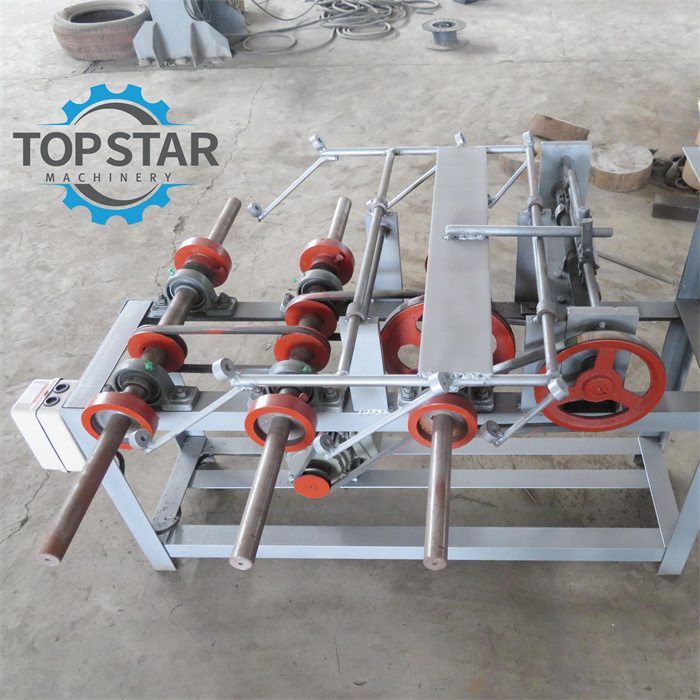

Spool winding machine
Overall dimension: 0.82m x 0.78m x 0.61m
Power: 0.75kw
Weight: 50kg

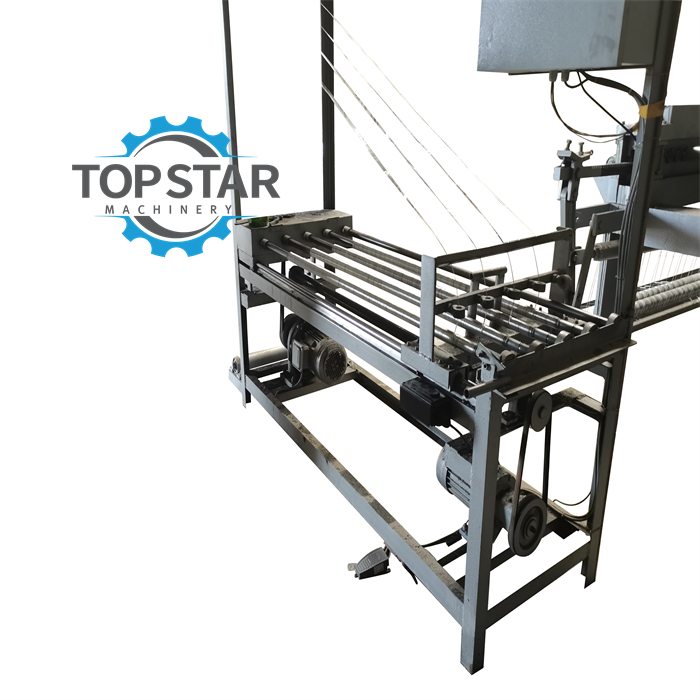

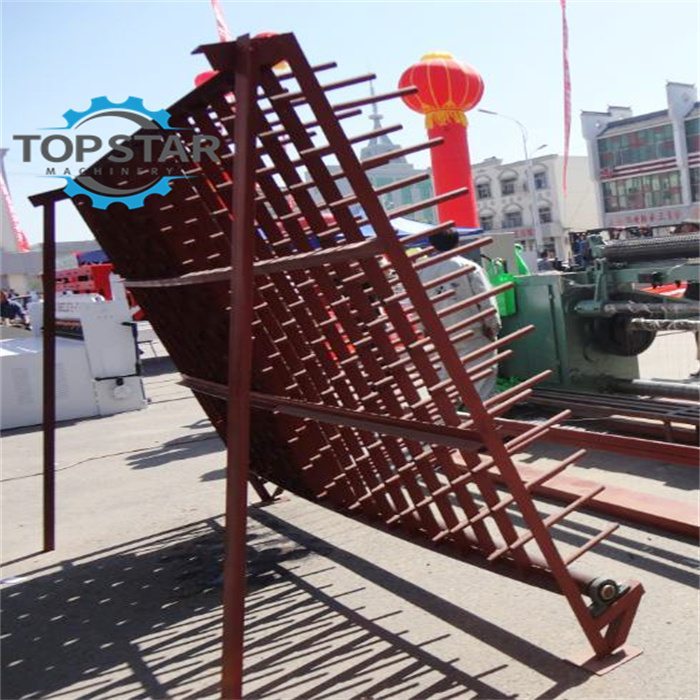

Wire reels and stand
Dimension: 3.0 x 2.0m
Weight:120kg
