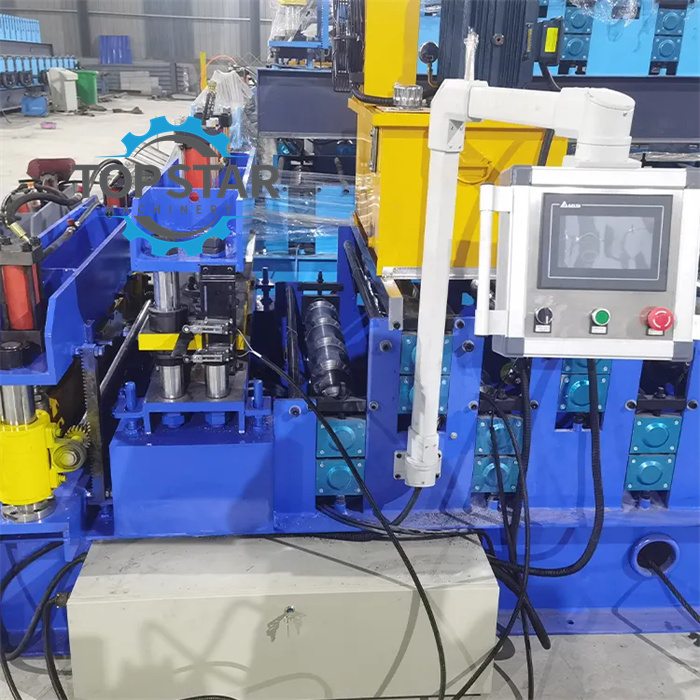

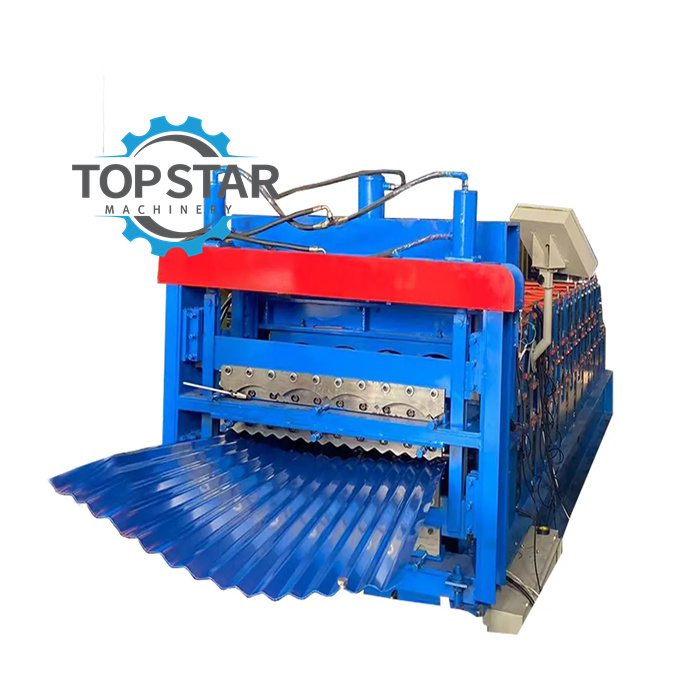

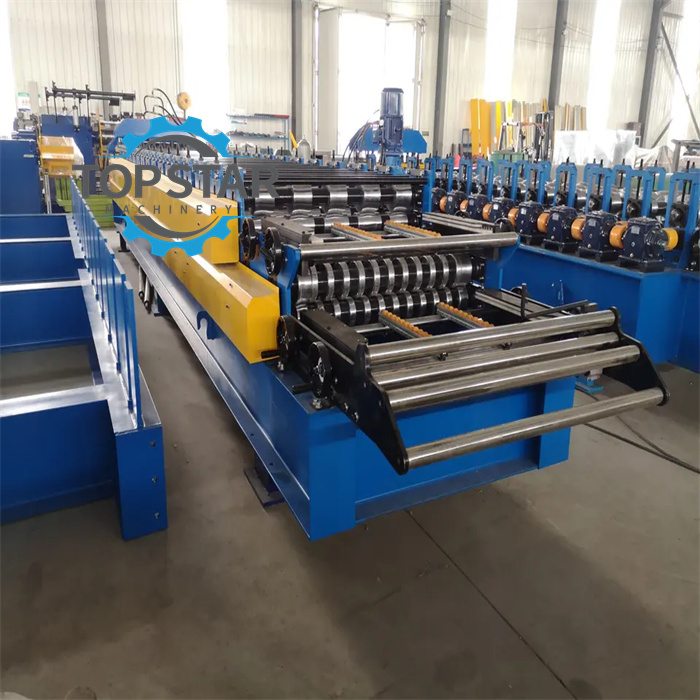

Cold roll steel forming machine
Cold roll steel forming machine Thickness:0.3-0.8mm
Cold roll steel forming machine Forming Speed: 12m/min
Description
Cold roll steel forming machine feature
Stable transmission: Double chain and gear drive, keynote rollers design.
Product diversity: Can produce two different products in the same machine, can save less space.
Driving of machine: by 1-inch chain
- Rollers: designed by senior engineers with Auto-cad software, manufactured with 45# high-grade steel
- Shaft:70mm manufactured
- Supporting frame: 350Hsteel to guide the forming station bearing basement
- The finished products will change if using different materials thickness

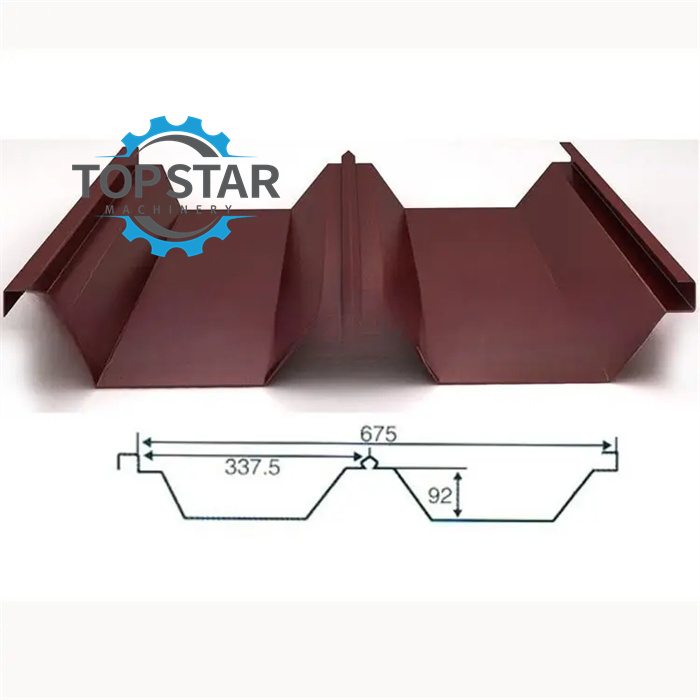

Cold roll steel forming machine profile drawing for reference:
Roof sheet has many different shapes, usually, different countries have their own popular design, and we can customize the machine according to customers’ demand.
| Formed Material | PPGI, GI, AI | Thickness:0.3-0.8mm |
| Decoiler | Hydraulic decoiler | Manual decoiler (will give you as free) |
| Main body | Roller station | 18 rows(As your requirement) |
| Diameter of shaft | 80mm solid shaft | |
| Material of rollers | 45# steel, hard chrome plated on the surface | |
| Machine body frame | 350 H steel | |
| Drive | Double Chain Transmission | |
| 7000*1400*1000mmDimension(L*W*H) | 7500*1600*1600(customize) | |
| Weight | 2.5T | |
| Cutter | Automatic | cr12mov material, no scratches, no deformation |
| Power | Main Power | 5.5KW |
| Voltage | 380V 50Hz 3Phase | As your requirement |
| Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| Forming Speed | 12m/min | The speed depends on the shape of the tile and the thickness of the material. |
