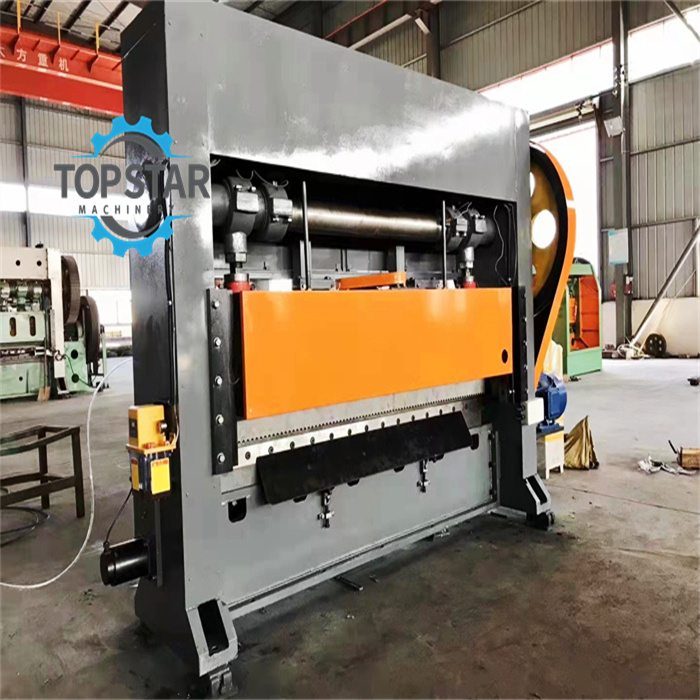

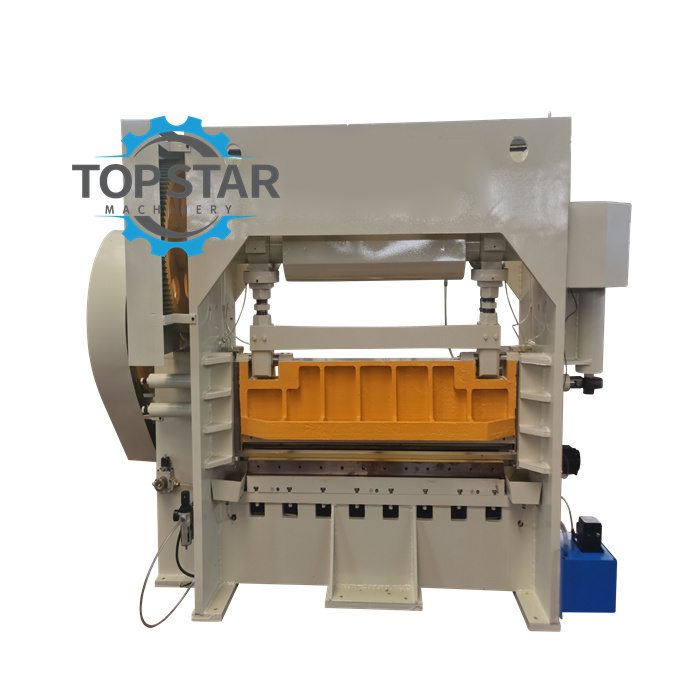

Expanded rib metal mesh lath machine

Expanded metal mesh machine mesh thickness:0.5-10mm

Expanded metal mesh machine mesh width:600-4000mm

Expanded metal mesh machine

Description

Expanded rib metal mesh lath machine features

Our machines are equipped with full-automatic lubricating systems, ensuring smooth operation and minimal maintenance. The servo motor feeding mechanism provides precise control over the feeding process, resulting in high-quality and consistent output.

One of the key advantages of Expanded metal mesh machines is their enhanced effect, control ability, stability, and safety. We have incorporated advanced technologies to improve the overall performance and safety features of our machines, ensuring a reliable and efficient operation.

In addition, our Expanded metal mesh machine boasts a reasonable structure and an elegant appearance. We understand the importance of aesthetics in your production environment, and our machines are designed to complement your existing setup. Furthermore, our machines are energy-saving, helping you reduce your operational costs and contribute to a sustainable future.

To ensure optimal performance, our machines are equipped with Siemens PLC frequency speed adjustable systems. This allows you to easily adjust the speed and output of the machines according to your specific production requirements.

Expanded rib metal mesh lath machine specification

Item	Unit	TSE25-40	TSE25-50	TSE25-63	TSE25-100	TSE25-160	TSE25-260
Max Thickness	mm	2.5	2.5	3	5	6/6/4	10
Max Width	mm	1500	1600	2000	2000/2500	2000/2500/3200	2000/2500/ 3200/4000
Speed	times/min	120	110	80	65	50	45
Strand size	mm	0-10	0-30	0-20	0-30	0-30	0-20
Long hole	mm	80	80	100	240	240	300
Motor Power	kw	11	11	11	18.5/22	30	55
Weight	t	6	6.2	11	12/14	17/19/21	29
Dimensions	mm	2870 x 1830 x 2140	3100 x 1830 x 2030	2400 x 3500 x 2300	3300x3700x2500 3300x4200x2500	3550x4300x2650 3550x4300x2650 3550x5000x2650	3700x4400x2700 3700x4900x2700 3700x5600x3700 3700x6400x3700
