Full automatic rebar mesh welding machine
Wire diameter:5-12mm
Mesh Width:0.5~3m
Welding Speed:40-60times/min
Wire material:Carbon steel,stainless steel
Description

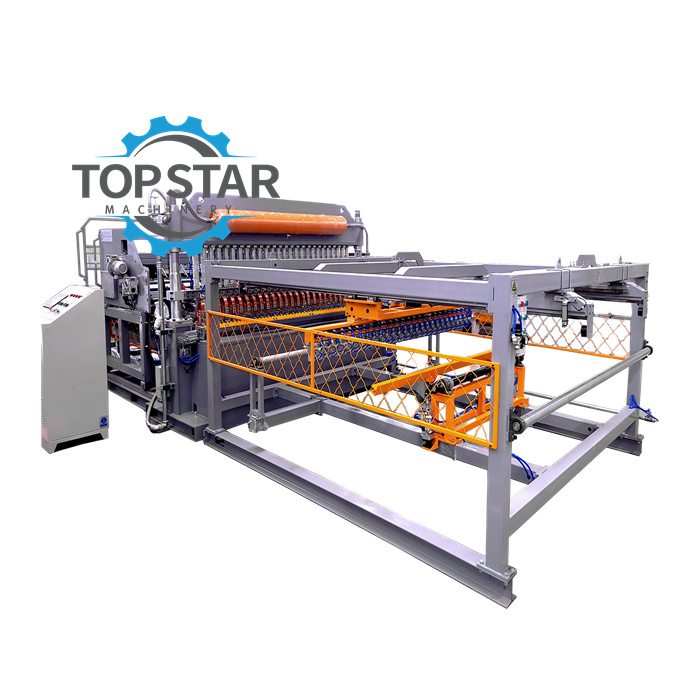

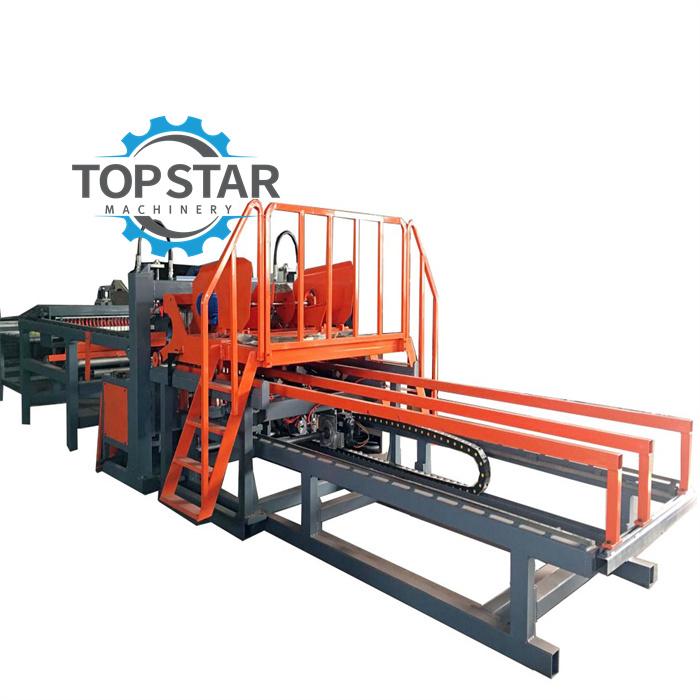

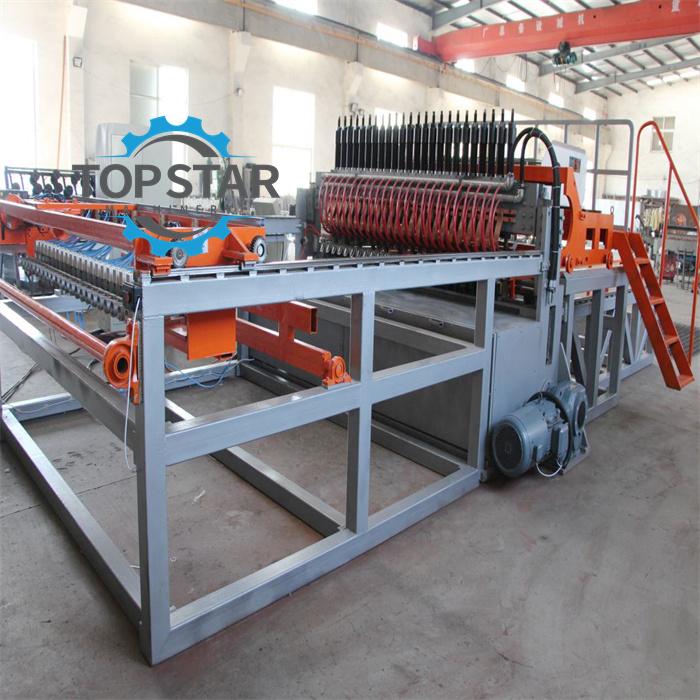

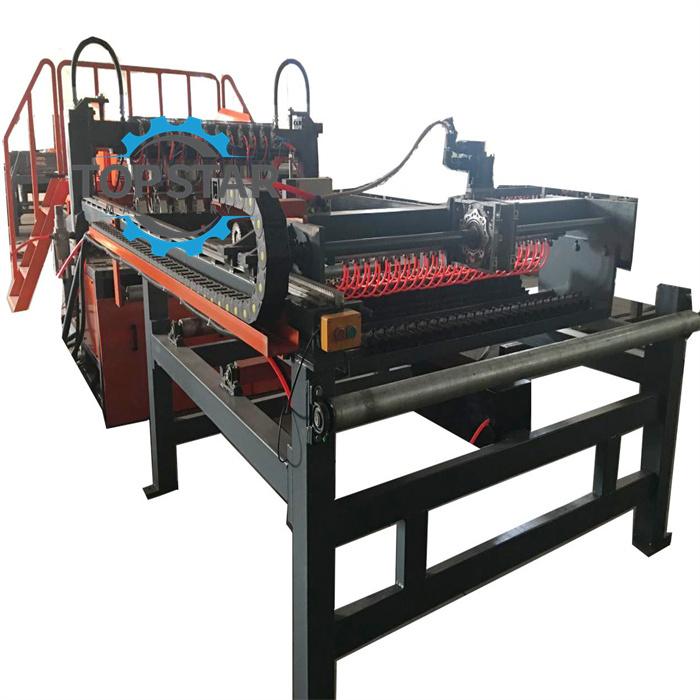

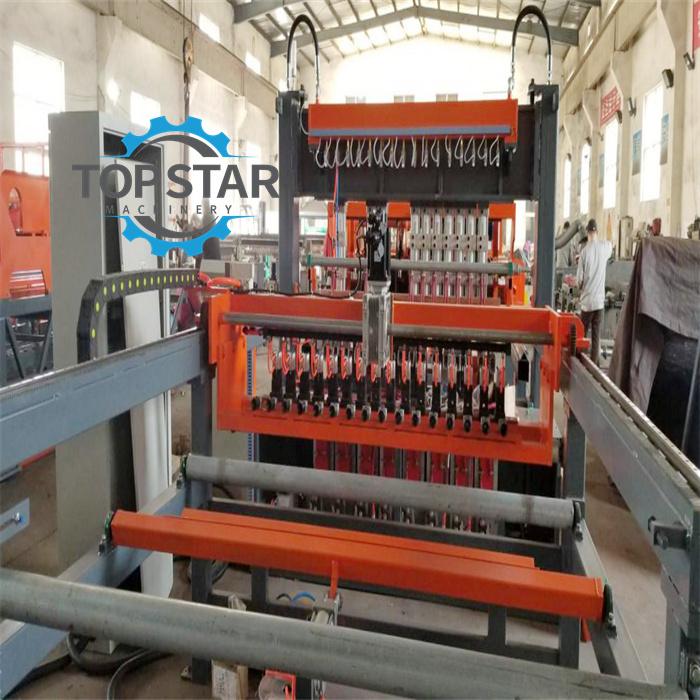

Full automatic Rebar mesh welding machine
The steel rebar mesh welding machine adopts modular structure design, which is more convenient for upgrading the functional structure, and provides convenience for satisfying different needs of customers in different periods. According to its structure, it is divided into vertical wire discharging frame, welding part, horizontal line blanking and drawing part, etc. It has the characteristics of novel structure, firm frame, easy operation and easy learning, and has high cost performance. To find more details, please contact us and get wire mesh welding machine price.
Rebar mesh welding machine specification
| Item | TS-2000 | TS-2500 | TS-3000 | TS-3300 |
| Number of Electrodes | 20 | 24 | 30 | 32 |
| Max.Mesh Width | 2500mm | 2500mm | 3000mm | 3300mm |
| Wire Diameter | 5.0-12.0mm | 5.0-12.0mm | 5.0-12.0mm | 5.0-12.0mm |
| Mesh Length | 3-12m | 3-12m | 3-12m | 3-12m |
| Cross Wire Space | 100-300mm | 100-300mm | 100-300mm | 100-300mm |
| Line Wire Space | 100-300mm | 100-300mm | 100-300mm | 100-300mm |
| Electric Capacity | 200KVA*10 | 200KVA*12 | 200KVA*15 | 200KVA*16 |
| Welding Speed | 40-60t/min | 40-60t/min | 40-60t/min | 40-60t/min |
| Control System | PLC control and Touch Screen | |||
