Description

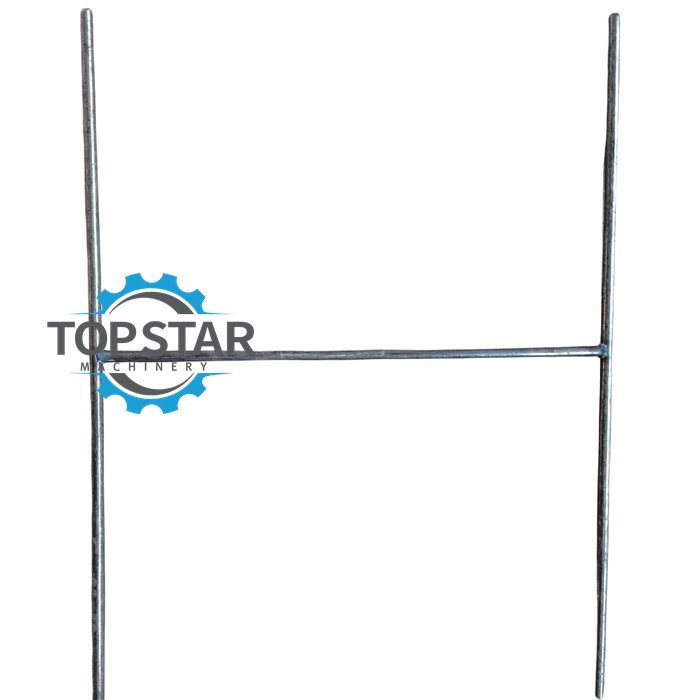

H frame sign welding machine , is also called H Stake welding machine,Yard Sign Stakes welding bending machine.The H Stakes welding machine is used to make Heavy Duty 9 Gauge Galvanized 10″ x 30″ H Frame, Wire Stakes,wire step stakes, Yard Sign Stakes , etc.

The H Frame sign Specification is:

Material: Heavy duty steel wire.

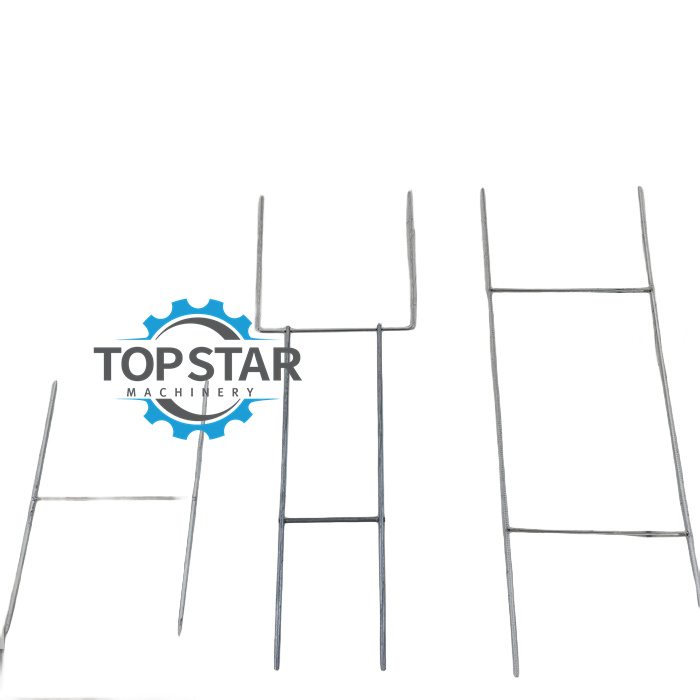

Style: 1-step H stake, 2-step H stake, heavy duty H stake.

Wire Diameter: 9 gauge,6 gauge, 3 gauge etc.

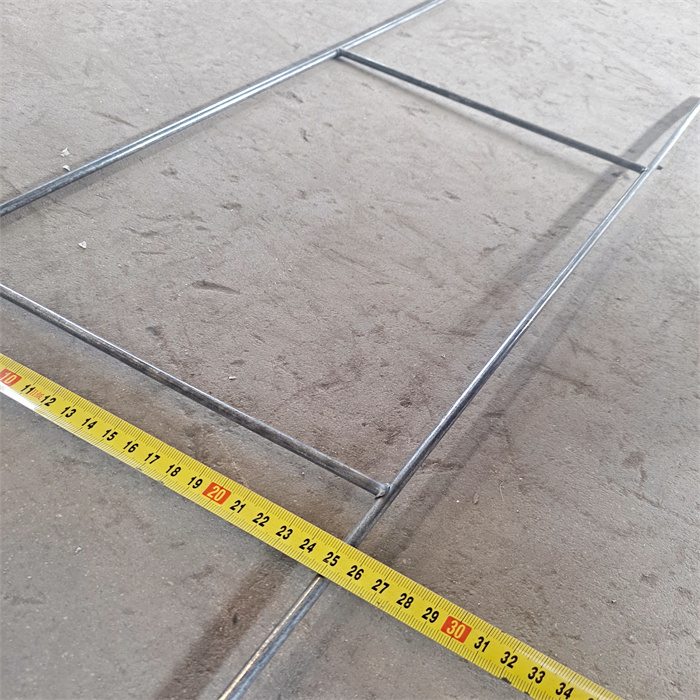

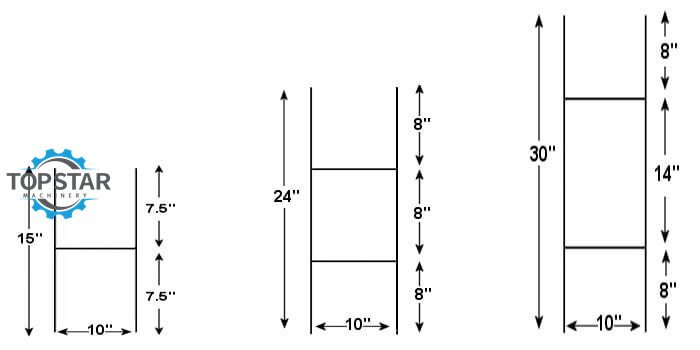

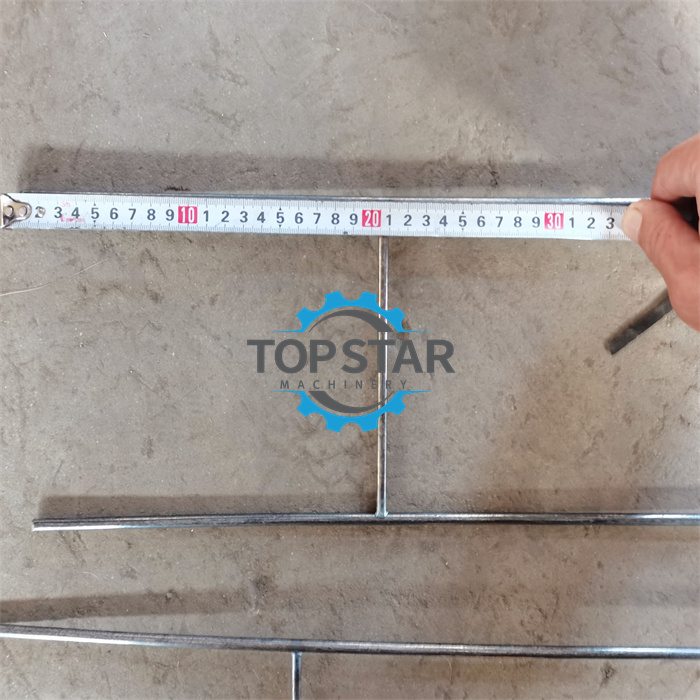

Size: 10″ × 15″, 10″ × 30″, 18″ × 24″, 24″ × 18″, etc.

Process: Welding.

Surface Treatment: Hot dipped galvanized

Color: Rich black, dark green, or customized.

Mounting: Insert in the soil.

and we can customize for you .

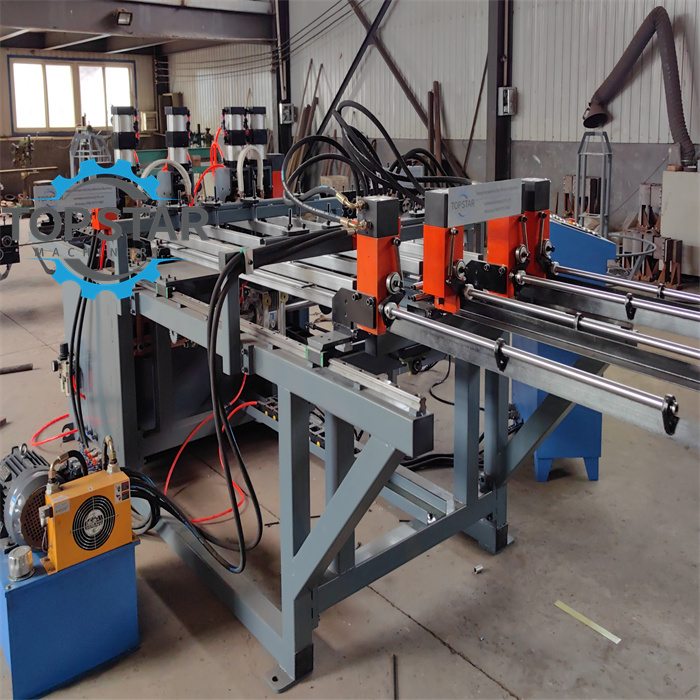

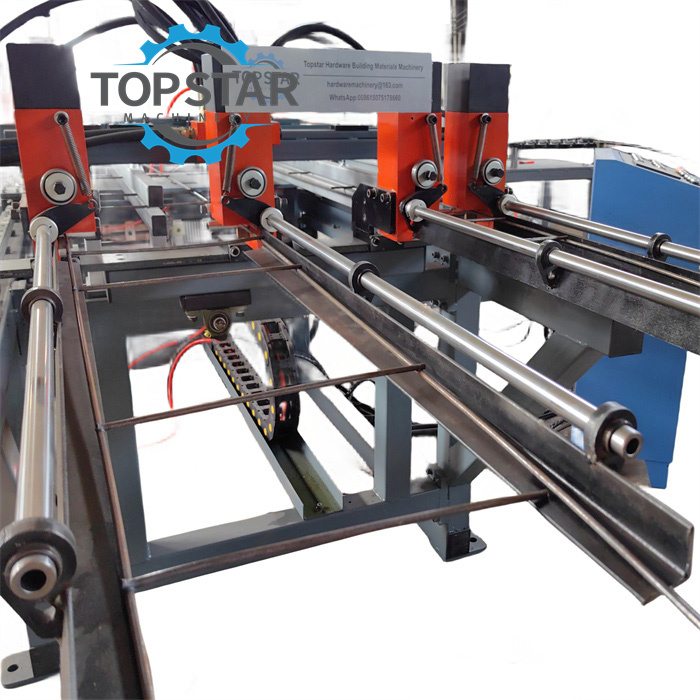

H Frame sign welding Machine Technical Parameter

Model: TS-GW-800

Wire diameter: 3-8mm

Line wire space: 50-300mm

Cross wire space:  Min.50mm

Mesh panel width max: 300mm, 10”

Mesh panel length max: 800mm, 30”

Welding speed:  Max.80-100 times/min

Line wire feeding:Coil feeding

Cross wire feeding:Coil feeding

H Stake Welding Machine dimension:7800×5000×1500 mm

Weight:  4.5T

H Frame sign Welding Machine Advantages

NO.1

SMC (Japan) custom-made 90 multi force

air cylinders

1. Output power increase 20%.
2. Air consumption save 30%.
3. Air cylinder length reduce 40%, short stroke.
4. Welding pressure: 570KG.
5. Piston rod don’t rotate.
6. Single-acting cylinder, connect with electromagnetic valve by one air pipe.
7. Compared with old type machine, total power consumption saves 50%.

NO.2

Auto feeding line wire system

Line wires are automatically clamped by SMC air cylinders, no need to adjust for different wire diameters.

NO.3

Cross wire feeding system

There is one motor& hardened reducer that

feeds a bulk of wires to the insider feeder

continuously. It can bear max.1T wires.

NO.4

Pulling mesh system

The up&down of the pulling a hook is controlled by SMC (Japan) air cylinders, and Panasonic (Japan) servo motor 2kw&planetary reducer to control mesh pulling, high precision, big power
