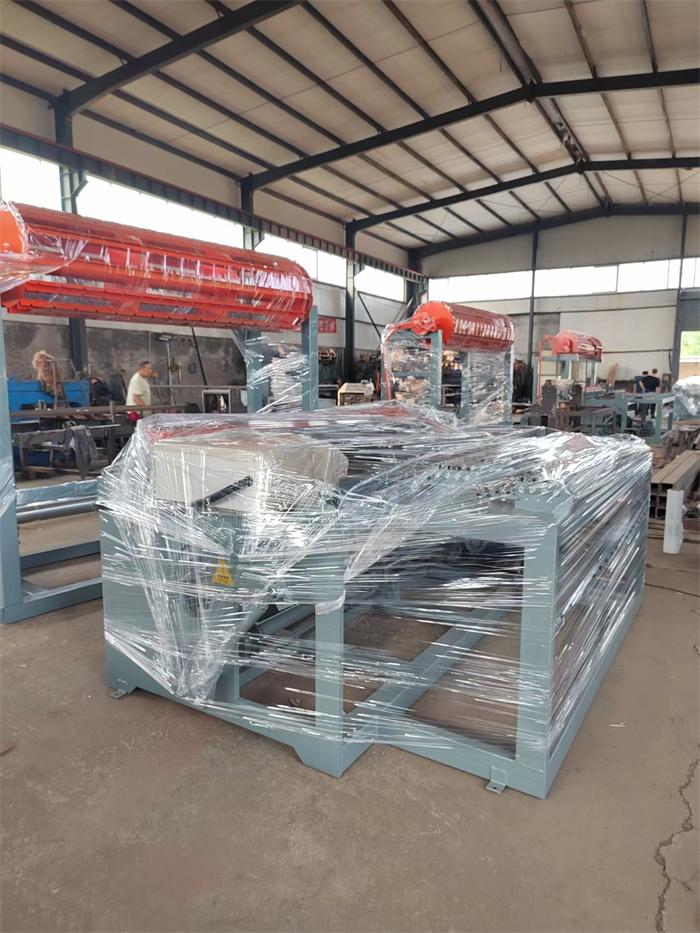

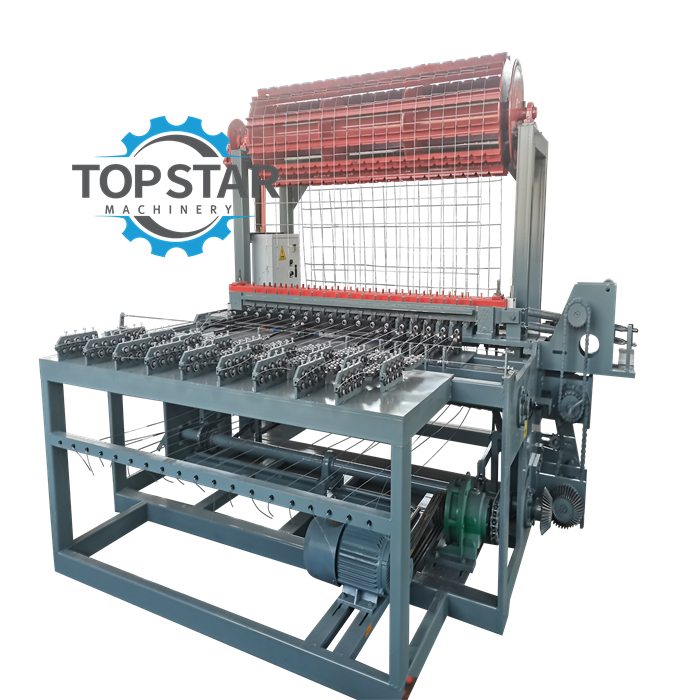

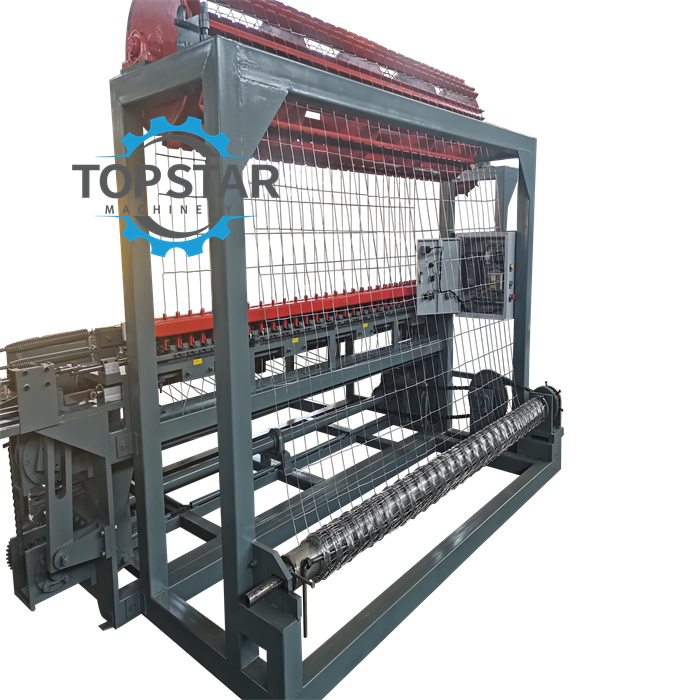

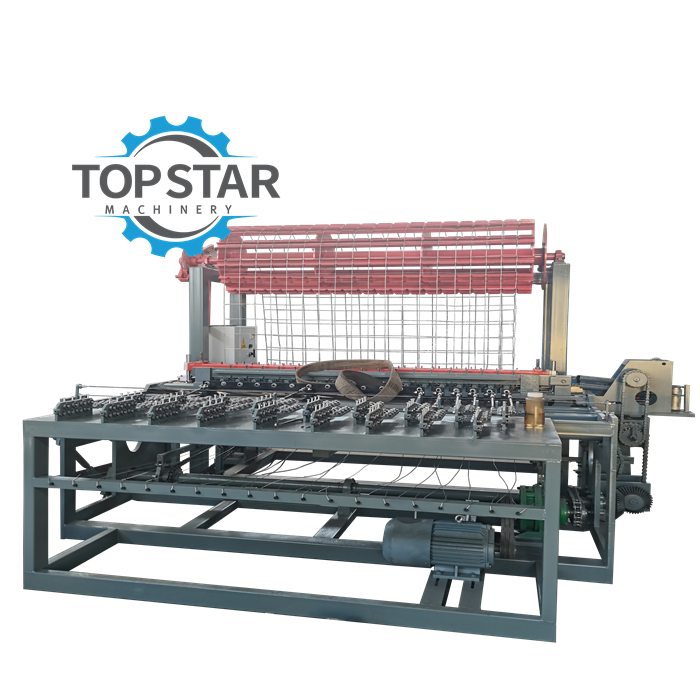

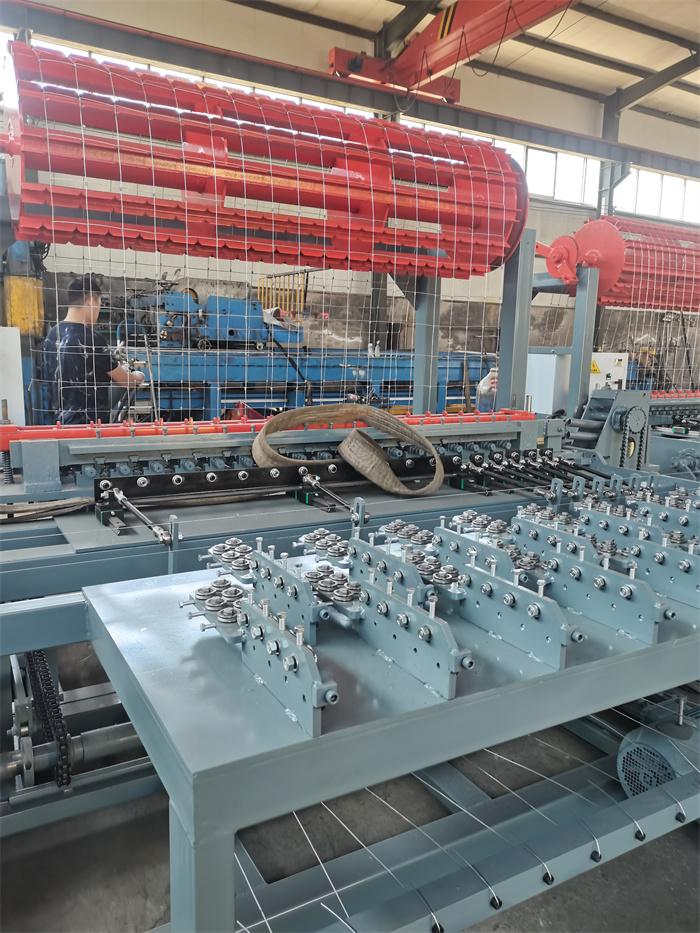

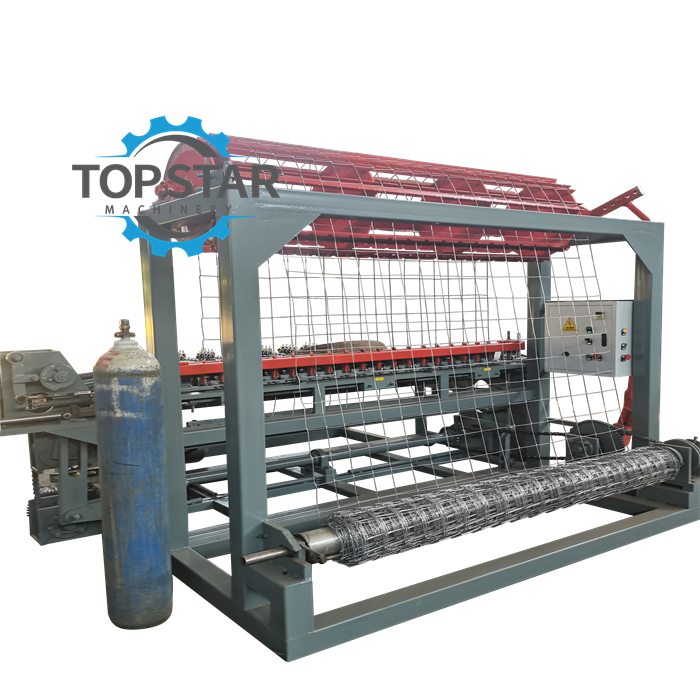

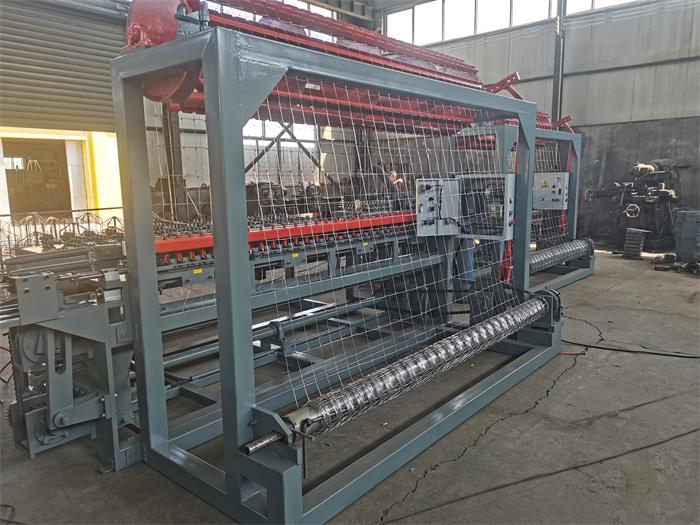

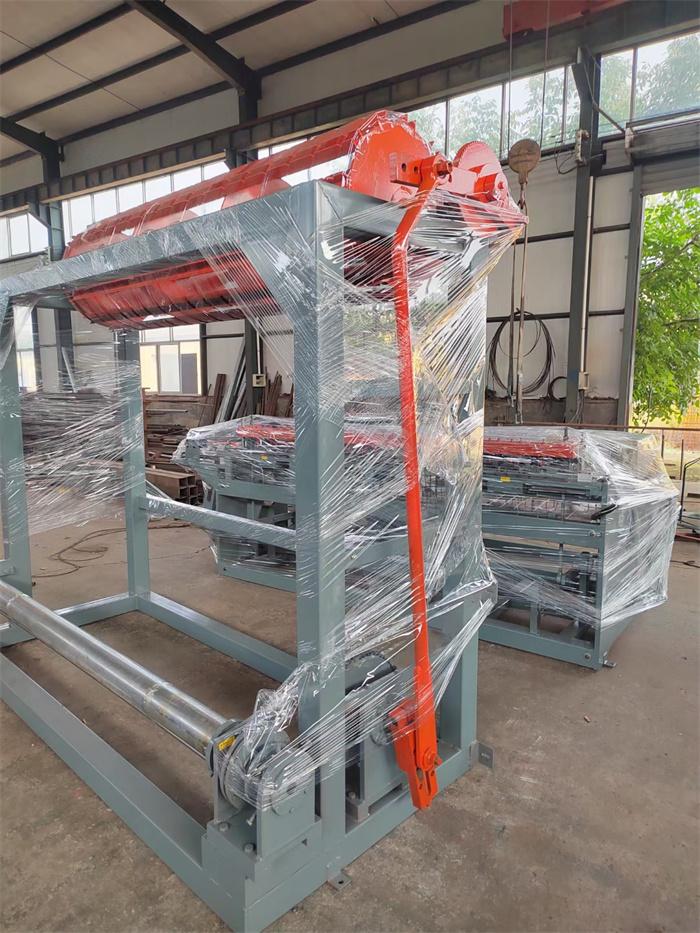

Hinge Wire joint fence machine
Hinge Joint Fence Machine Width:1000mm~3000mm
Hinge Joint Fence Machine wire diameter:1.8mm -3.0mm
Hinge Joint Fence length:50~100m
Description
Hinge Wire Joint Fence Machine Introduction

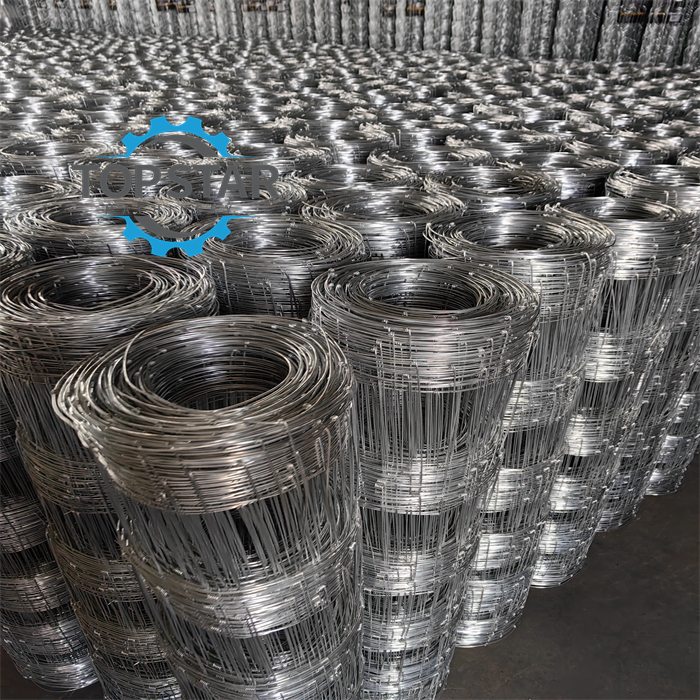

The hinge fence machine is the only equipment for producing hinge fence nets. The hinge fence machine is characterized by the coordinated operation of its various components, stable and flexible operation, and has become the primary fence for sand control, grassland protection, ecological environment management, and agriculture and animal husbandry all around the world.
Hinge Joint Fence Machine Features:
Fully automatic wire feeding
Warp wire straightening roller
Straight guide rail for horizontal wire feeding, fast and stable movement
Pneumatic cutting and flipping of weft wire
Automatic fence pulling
Automatic fence collecting
Control system: simple and easy-to-understand operation interface. Equipped with a Delta frequency converter and Schneider electronic components, the working speed is adjustable, and energy saving is up to 30%. Adopting Guomao reducer – China’s top brand.
Hinge Joint Fence Machine Specification:
The diameter of the horizontal and vertical wires is 1.8mm.
The diameter of the top and bottom outer wires is 3.5mm.
Motor power: 7.5kw
Voltage: 220v – 445v, 50HZ/60Hz, three-phase
Speed: up to 45 times/minute
Weight: about 4 tons
Dimensions: 3700mm × 1630mm × 2600mm
| Model | TSH-1 | TSH-2 | TSH-3 | TSH-4 |
| Fence width | 1427mm | 1880mm | 2000mm | 2500mm |
| Motor | 4kw | 5.5kw | 7.5kw | 11kw |
| Max. line wire quantity | 11 | 13 | 19 | 24 |
| Line size | Min.75mm or Min. 50mm if required | |||
| Weft size | 50 – 500mm (adjustable) | |||
| Twine wire diameter | 1.8mm – 2.5mm | |||
| Line wire diameter | 1.8mm – 3.0mm | |||
| Side wire diameter | 2.0mm – 3.5mm | |||
| Twine wire tensile strength | 300 – 500N/mm² | |||
| Line wire tensile strength | 300 – 1400N/mm² | |||
| Max. productivity | 60rows/min | |||
| Voltage | 3phase, 380V/220V/415V/440V, 50HZ/60HZ,Customized | |||
| Dimension | 2.8 × 3.2 × 2.4m | 3.3 × 3.2 × 2.4m | 3.3 × 3.2 × 2.4m | 3.9 × 3.4 × 2.4m |
| Weight | 3T | 3.5T | 4T | 4.5T |
| Note: We can design the machine according to the customer’s request. | ||||
