Description

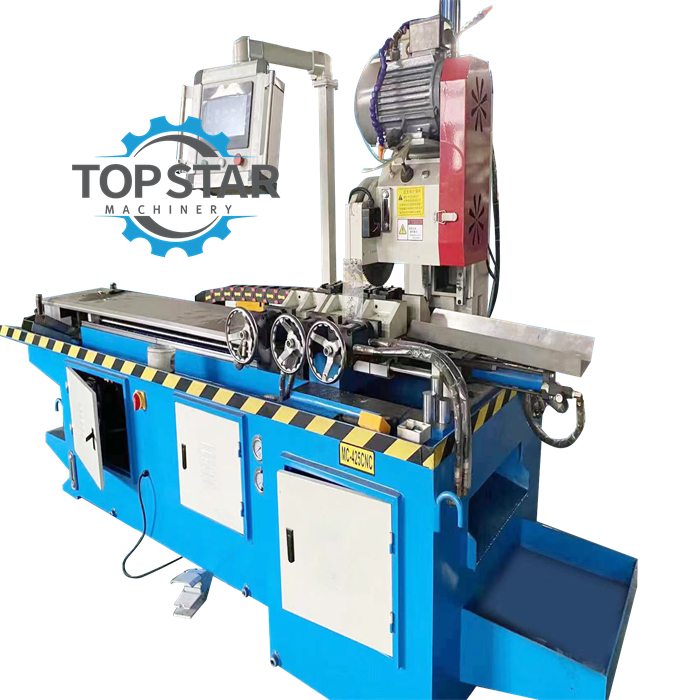

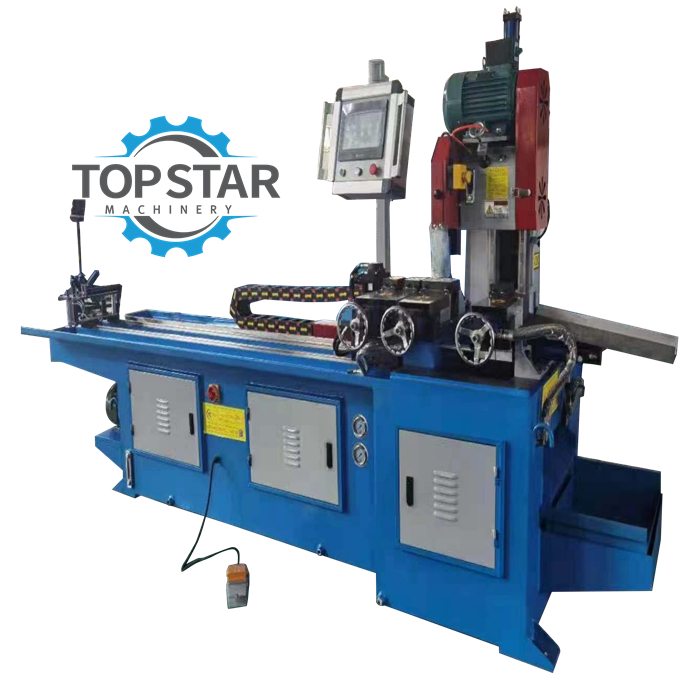

Steel pipe cutting and chamfering machine features

1. This machine can feed 1500mm at one time (the feeding length can be customized according to the customer’s actual requirements).
2. It can cut single or multiple pipe fittings (depending on the size of the pipe fittings).
3. Feeding can be repeated multiple times.
4. This equipment can cut steel pipes of different diameters (∮6mm – 160mm) by changing the jaws.
5. Feeding mechanism: It adopts the form of a servo motor + ball screw, and the feeding guide rail adopts a self-lubricating linear guide rail.
6. Pipe cutting: adopts vertical slide form, and the track adopts a self-lubricating linear guide rail.
7. Structure and action description: The pipe fittings are placed on the machine table, automatically clamped, automatically fed, automatically cut, and cycled.

Pipe cutting and chamfering machine Specification

1. Main motor: 2/4 pole 3.3/4kw

2. Spindle speed: 95/120

3. Outer diameter: Φ250 – 425mm

4. Center hole: Φ32mm

5. Pinhole: 2 x Φ11 x 65mmPCD

6. Feeding length: 1500mm x single time

7. Oil pump system: 2.2kw, 4-pole motor, double oil pump, working pressure 25 – 35kg/c ㎡

8. Feeding servo motor: Mitsubishi 1000w

9. Cooling system: 0.09kw motor, automatic cooling cycle

10. Machine dimension: 4500mm x 1400mm x 1600mm

11 Machine weight:2000kgs

Steel pipe cutting and chamfering machine suitable workpiece:

Feeding length:1500mm

Round tube: Φ125

Square tube: 125 x 125mm

Rectangular tube: 130 x 100mm

Solid round bar: Φ76

Solid profile: 125 x 125mm

Special molds, and non-standard equipment, need to be ordered separately
