Description

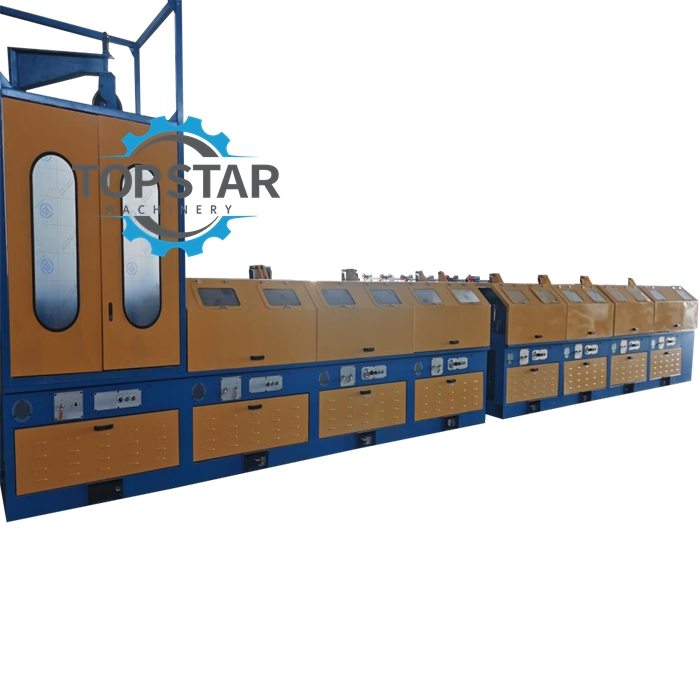

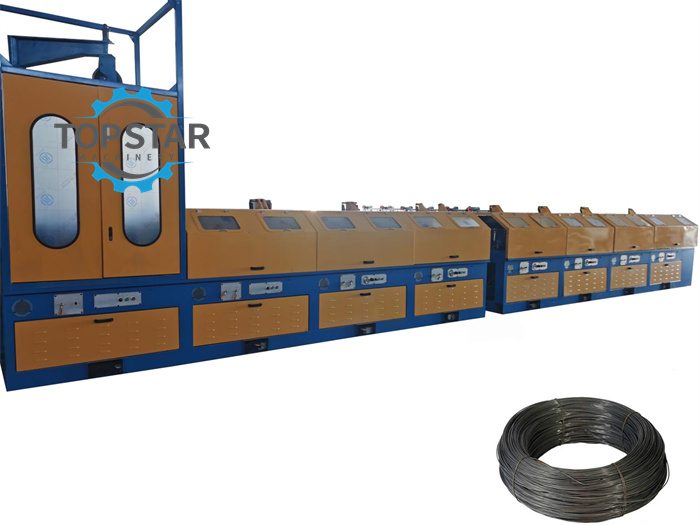

The high-efficiency straight-line wire drawing machine is designed with advanced features to meet your wire drawing requirements.

The straight-line wire drawing machine is equipped with human-machine dialogue, motor over-temperature protection, water pressure abnormal alarm, and fault display functions. It is highly efficient, easy to operate, and high degree of automation. During the wire drawing process, there is no intermediate pulley or guide wheel, which eliminates bending and twisting and makes threading easier. Our machine is suitable for drawing large diameter, high strength, and special-shaped steel wires.

We use variable frequency technology, which allows for a wide range of compression ratios and high-speed stretching even when the number of strokes changes significantly. There is no relative sliding between the wire and the winch, resulting in a much better-quality of finished wire.

Our wire drawing machine has a high-quality surface finish and uniform thickness and is equipped with a good cooling system, including water and air cooling, ensuring high quality and reliability with low downtime. The machine is also equipped with a PLC variable frequency speed control system, making it easy to operate. The structure includes a hydraulic pay-off machine, hydraulic descaling machine, brush descaling machine, main block, and hydraulic take-up machine.

Straight Line Wire Drawing Machine

Main Features

-Easy in installation and maintenance

-Components from world-famous brands

-High automatization, high intellectualization, and no pollution

-Frequency technology

-Wide range and high-speed

-Good drawing system, and fine wire quality

Wire drawing machine drum

-Material: Cast steel, tungsten coating, and surfacing, HRC60. Roughness is less than 0.8umm

-Drawing drum Diameter: 560mm

Drawing machine drum cooling system

-Drum inside cooling: The drum’s inner wall has 3 water channels which are displayed in a 120-degree direction by water spraying.

-Drum external cooling: the ventilation pipe below the outside of the drum uses 360 degrees of forced air cooling on the surface of the drum and wire to lower the surface temperature of the reel below 80 degrees

-Drawing Die box cooling way: The drawing die is cooled by using direct water inlet and outlet water, and the cooling effect is especially good

Wire drawing machine Capacity:1000kgs/ hr

Drawing Machine Motor:  22kw x 2, 18.5kw x 5

380V, 50HZ (can be customized)

750 type H type wire collector:15kw

Tension control system: Fully automatic

Controlling system: Siemens PLC

Laser diameter measuring and length calculator

Wire feeding way: High Pneumatic feeding

Wire drawing machine cooling way: Water cooling

Safety device: Safety protection cover, broken line stop test

Vacuum design: Vacuum cleaning hole

Pneumatic brake

Weight:14T

We can also customize the details of the machine according to your specific needs and requirements.
