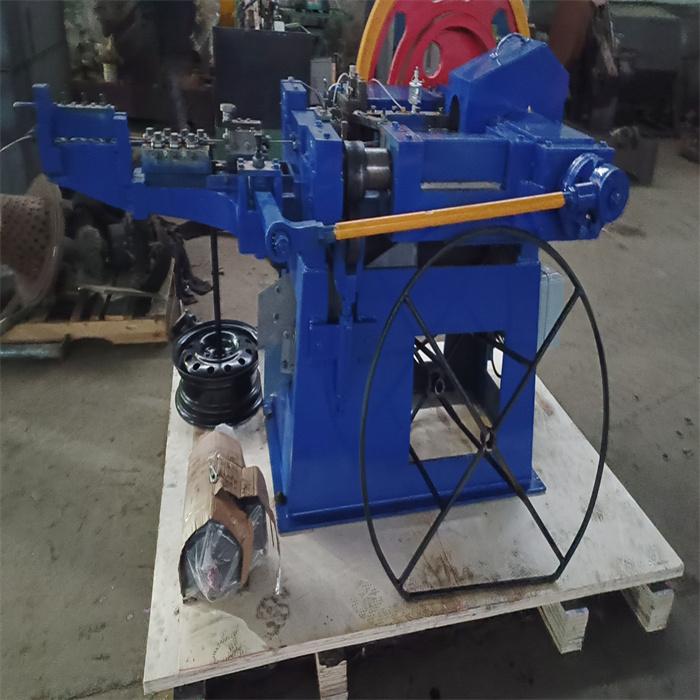

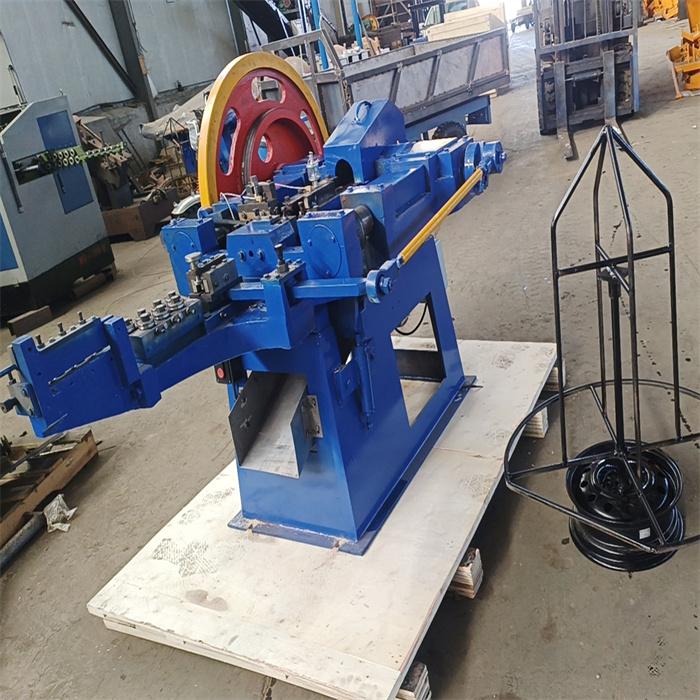

U shape nail making machine

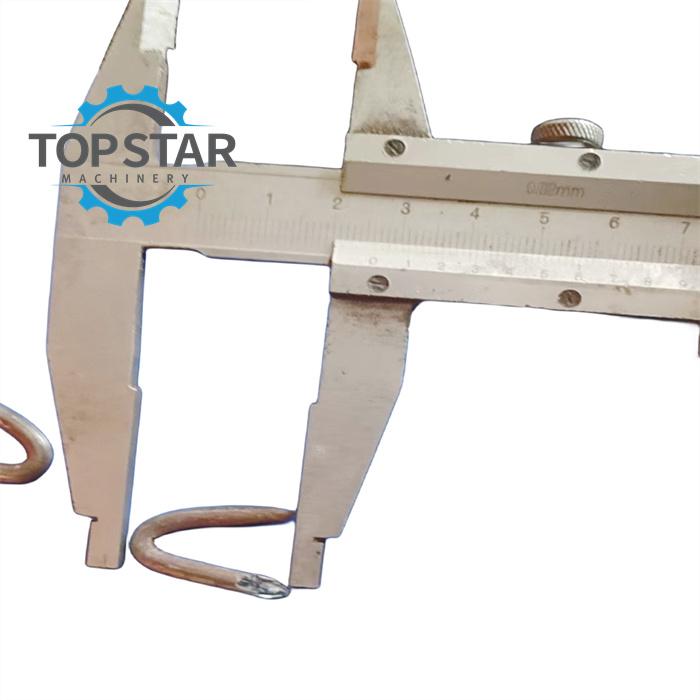

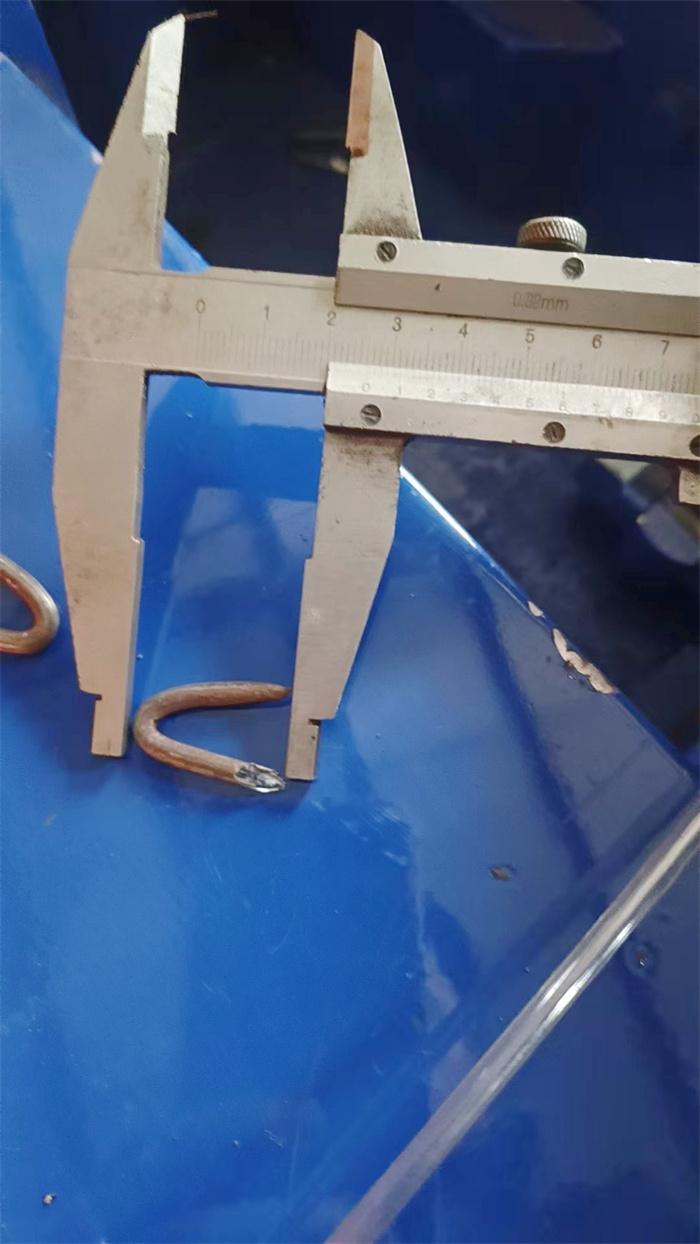

DIameter of U nail: 3.5~4.5mm
Nail length:80~100mm
machine power:3 kw,4kw
U nail machine speed: 220~280 pcs/min
Description

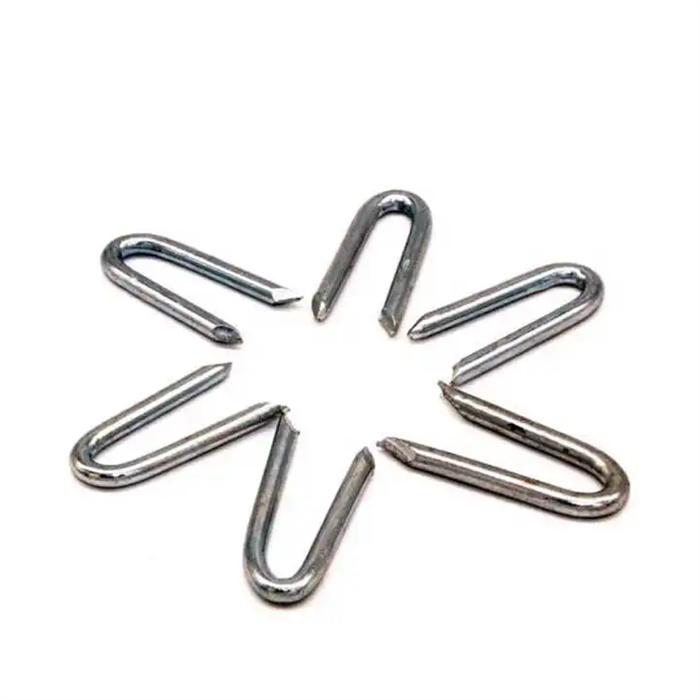

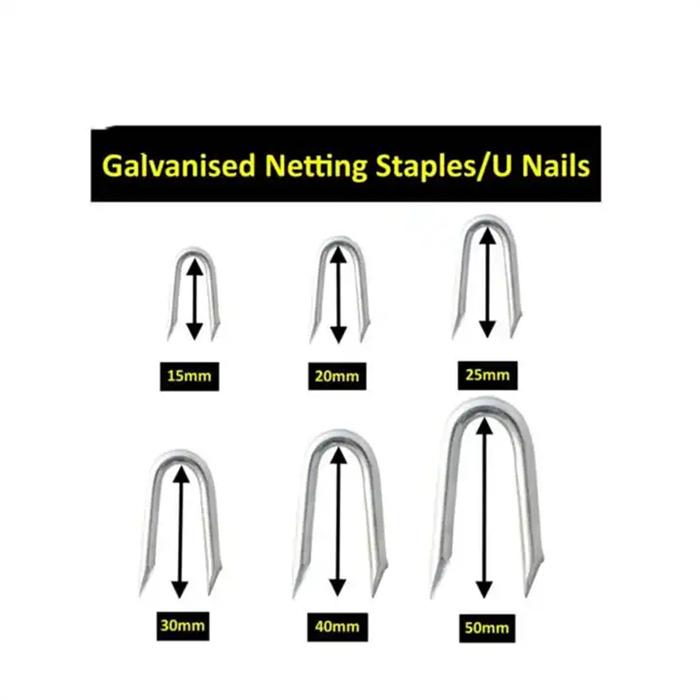

U shape nail making machine is used for making U type nails. The main model Z94-3U and Z94-4U. U nails refer to a kind of fasteners with two-pronged shanks. These U shaped nails are usually used for attaching the mesh fences to wooden posts and frame, so it is also named fencing staples. U Nails Type– Smooth or Barbed Shank U nails
U shape nail making machine specification
| Model | Z94-3U nail making machine | Z94-4U nail making machine |
| Max. dia. of nail | 3.5mm | 4.5mm |
| Min. dia. of nail | 1.8 mm | 1.8mm |
| Max. Length of nail | 80mm | 110mm |
| Motor power | 3kw | 4kw |
| Nail making speed | 280pcs/min | 220pcs/min |
| machine dimension | 2.0*1.4*1.4m | 2.3*1.5*1.6m |
| Weight | 1.1 tons | 2tons |
U shape nail making machine application
