Automatic washer punching machine
Washer punching machine Nominal force:800KN

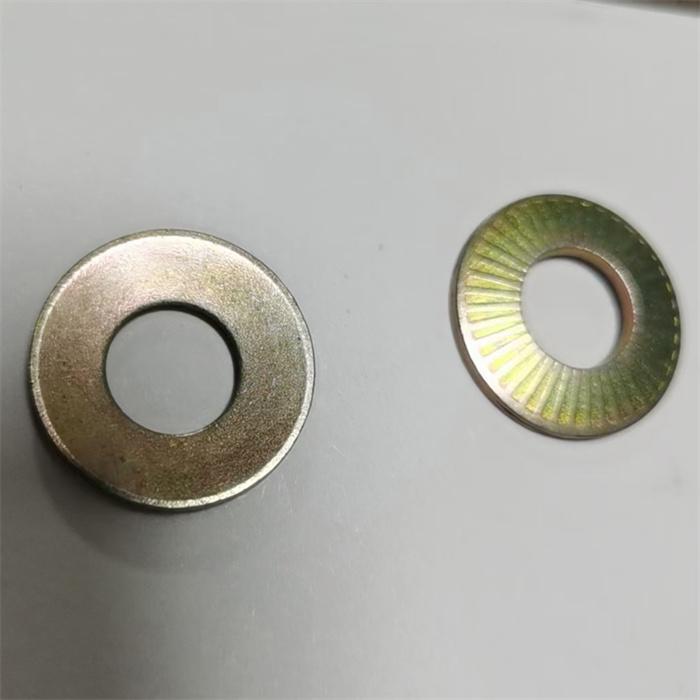

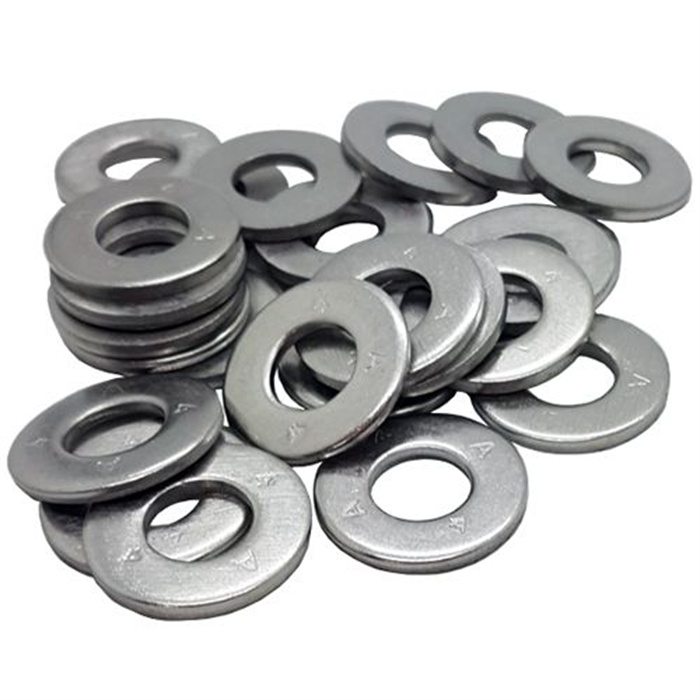

Washer specification:8mm,10mm,12mm,16mm
Description

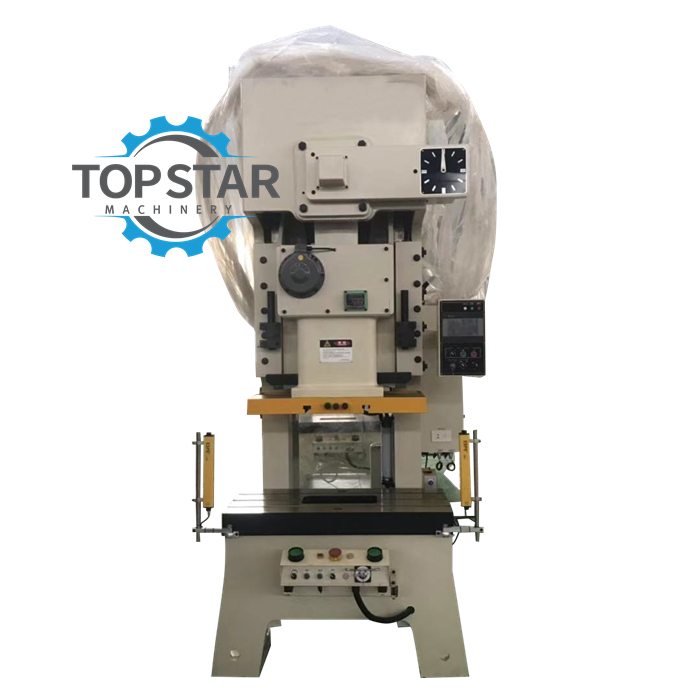

This washer punching press machine is in our factory customize according to the market demand and development direction, the collection of foreign advanced design concepts to develop a new type of open single point punch. The body of the punch machine is designed into a C-shaped frame structure, after tempering processing, which has the characteristics of fine holding, strong machine rigidity, suitable for punching, blanking, shallow drawing, and other processing.
Washer punching press machine specification
| No | Item | Unit | Quantity | Remark |
| 1 | Quantity | Set | 1 | – |
| 2 | Structure | – | Open single point | – |
| 3 | Nominal force | KN | 800 | – |
| 4 | Capability occurrence point | mm | 4 | – |
| 5 | Slide block stroke | mm | 140 | customized |
| 6 | Number of strokes | times/min | 40 – 85 | customized |
| 7 | Max mold assembly height | mm | 335 | customized |
| 8 | Mold assembly height adjust scale | mm | 80 | – |
| 9 | Mold assembly height adjust method | – | Electric | – |
| 10 | Upper platform dimension | mm | 560 x 460 | customized |
| 11 | down platform dimension | mm | 1000 x 550 | customized |
Washer punching press machine mold
The molds are divided into two parts: the shelf and the core. Different models can share a mold frame, just replace the core of the core. You can disassemble it yourself on the punching bed for easy operation.
